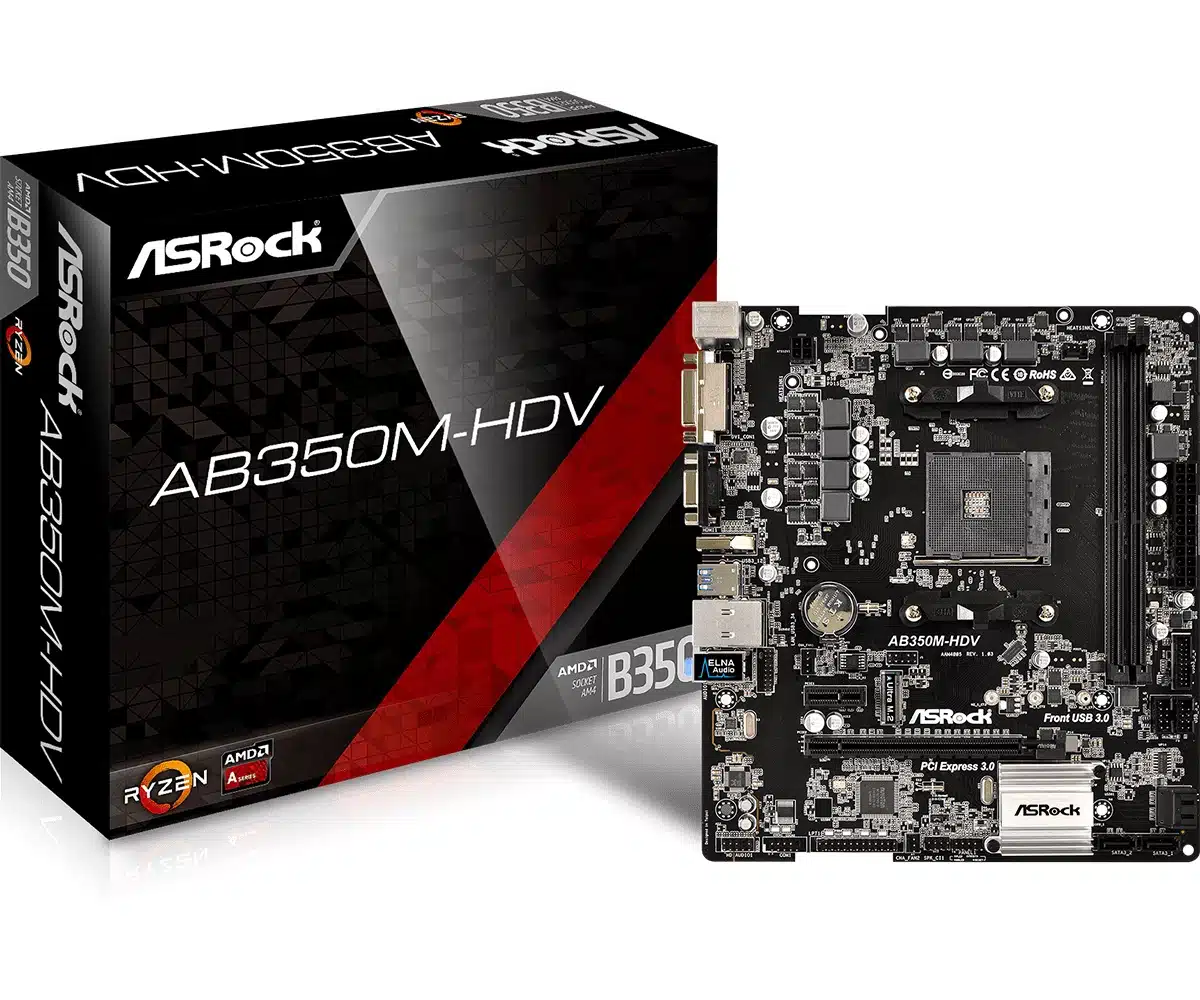

לוח אם ASRock AB350M-HDV

Micro ATX

ASRock Super Alloy

Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs – Summit Ridge & Raven Ridge

Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)

1 PCIe 3.0 x16, 1 PCIe 2.0 x1

Graphics Output: HDMI, DVI-D, D-Sub

Supports Triple Monitor

7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps

4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

6 USB 3.1 Gen1 (2 Front, 4 Rear)

Realtek Gigabit LAN

Unique Feature:



ASRock Super Alloy

High Density Glass Fabric PCB

Sapphire Black PCB

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)

Digi Power design

7 Power Phase design

Supports CPU up to 65W

Chipset

AMD Promontory B350

Memory

Dual Channel DDR4 Memory Technology

2 x DDR4 DIMM Slots

AMD Ryzen series CPUs (Matisse) support DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*

AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*

AMD Ryzen series CPUs (Picasso) support DDR4 2933/2667/2400/2133 non-ECC, un-buffered memory*

AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*

AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory*

AMD 7th Gen A-Series APUs support DDR4 2400/2133 non-ECC, un-buffered memory*

Max. capacity of system memory: 32GB**

15μ Gold Contact in DIMM Slots



*Please refer to Memory Support List on ASRock’s website for more information.
Please refer to below table for AMD non-XMP memory frequency support.

A-Series APUs:

Ryzen Series CPUs (Matisse):

Ryzen Series CPUs (Pinnacle Ridge):

Ryzen Series CPUs (Picasso):

Ryzen Series CPUs (Summit Ridge):

Ryzen Series CPUs (Raven Ridge):

SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Supports “Plug and Play”

ACPI 5.1 compliance wake up events

Supports jumperfree

SMBIOS 2.3 support

DRAM Voltage multi-adjustment

Graphics

Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

Integrated AMD Radeon™ R-Series Graphics in A-series APU*

DirectX 12, Pixel Shader 5.0

Shared memory default 2GB. Max Shared memory supports up to 16GB.**

Three graphics output options: D-Sub, DVI-D and HDMI

Supports Triple Monitor

Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz

Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz

Supports D-Sub with max. resolution up to 2048×1536 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HDCP 1.4 with DVI-D and HDMI Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports



*Actual support may vary by CPU



**The Max shared memory 16GB requires 32GB system memory installed.

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Supports Surge Protection

ELNA Audio Caps

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Realtek RTL8111GR

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports LAN Cable Detection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Slots

AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*

AMD 7th A-Series APUs / Raven Ridge CPUs

1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*

AMD Ryzen series CPUs (Picasso, Raven Ridge)

1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*

AMD Athlon series CPUs

1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*



1 x PCI Express 2.0 x1 Slot



*Supports NVMe SSD as boot disks

Storage

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU, and Athlon 2xxGE series APU)*



*Supports NVMe SSD as boot disks

Supports ASRock U.2 Kit

Connector

1 x Print Port Header

1 x COM Port Header

1 x TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)*

2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)

1 x 24 pin ATX Power Connector

1 x 4 pin 12V Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)



*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

Rear Panel I/O

1 x PS/2 Mouse/Keyboard Port

1 x D-Sub Port

1 x DVI-D Port

1 x HDMI Port

2 x USB 2.0 Ports (Supports ESD Protection)

4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

ASRock A-Tuning

ASRock APP Charger

ASRock XFast LAN

UEFI

ASRock Full HD UEFI

ASRock Instant Flash

ASRock Easy RAID Installer



*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD

Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Accessories

Quick Installation Guide, Support CD, I/O Shield

2 x SATA Data Cables

1 x Screw for M.2 Socket

Hardware Monitor

CPU, Chassis temperature sensing

CPU, Chassis Fan Tachometer

CPU, Chassis Quiet Fan

 CPU, Chassis Fan multi-speed control

CASE OPEN detection

Voltage monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm

Solid Capacitor design

OS

Microsoft® Windows® 10 64-bit

Certifications

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)
