RUBICON 2
Combining large cabinet volume and our unique hybrid tweeter module, the RUBICON 5 extends and widens higher frequencies to deliver a flawless soundstage of impeccably crisp detail and perfectly precise bass response to bring music to life.
Speaker Size - ללא אריזה:
Dimensions (H גובה x W רוחב x עומק D) 350 x 195 x335
Soft Dome Tweeter
With clear heritage from our high-end series, the lightweight dome tweeter offers best-in-class resolution.
Wood Fibre Cones
The wood fibre cone gives a light, rigid and uneven surface for even, piston-like motion and greatly reduced surface resonance.
Patented SMC
With an SMC magnet pole-piece surrounded by a slitted copper cap, the effect of the SMC is focused and maximised to reduce distortion.
Cabinet Construction
Creating separate chambers for each driver enables us to individually tune them for optimal output.
Design and Materials
The perfect blend between compact size and large sound performance.

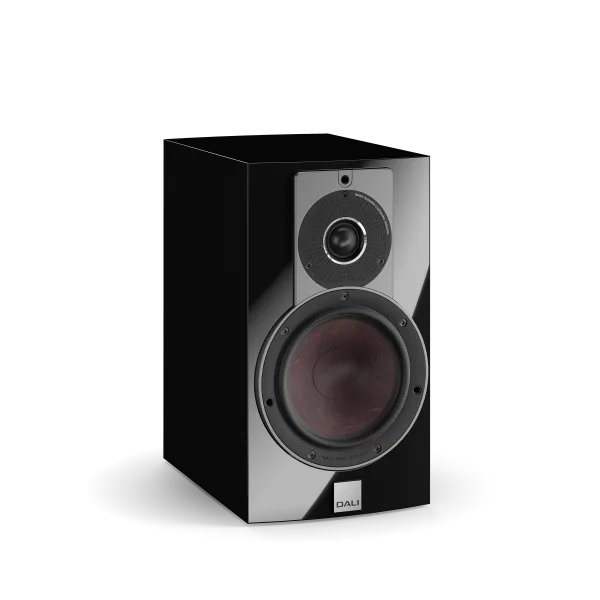

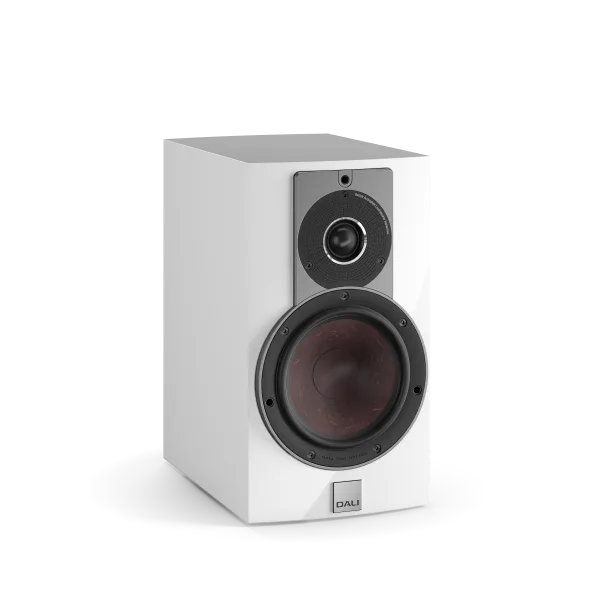

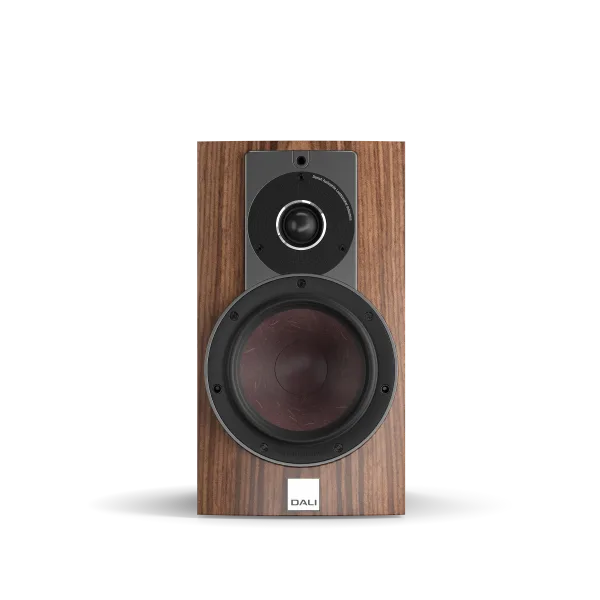

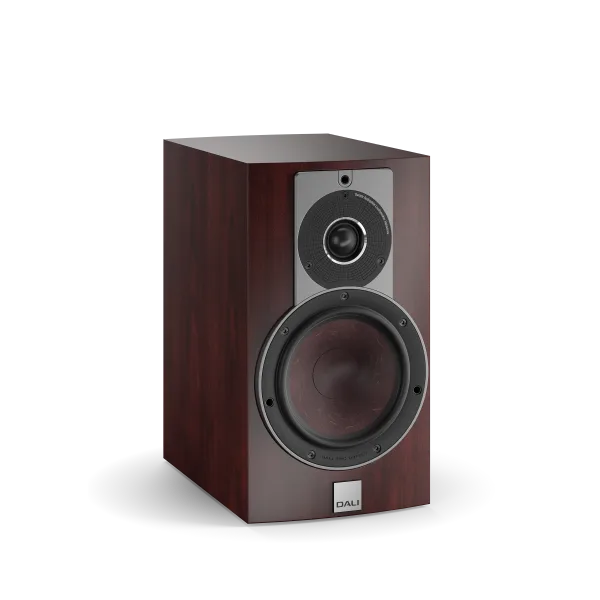

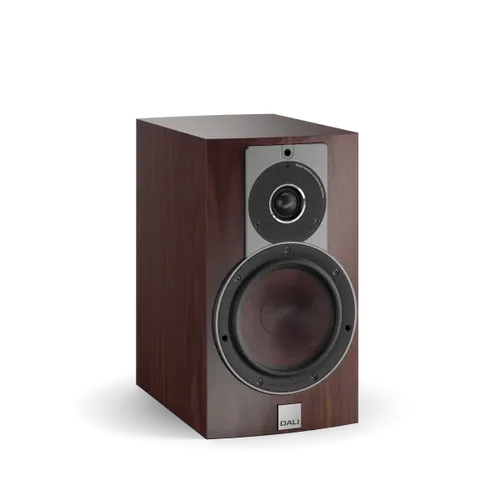

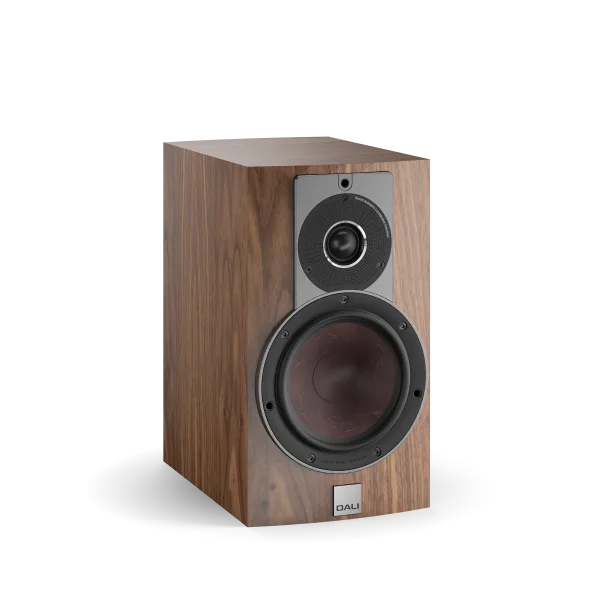

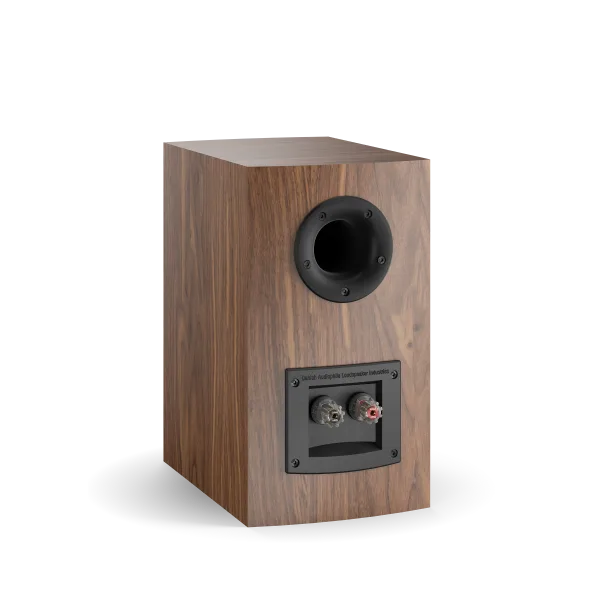

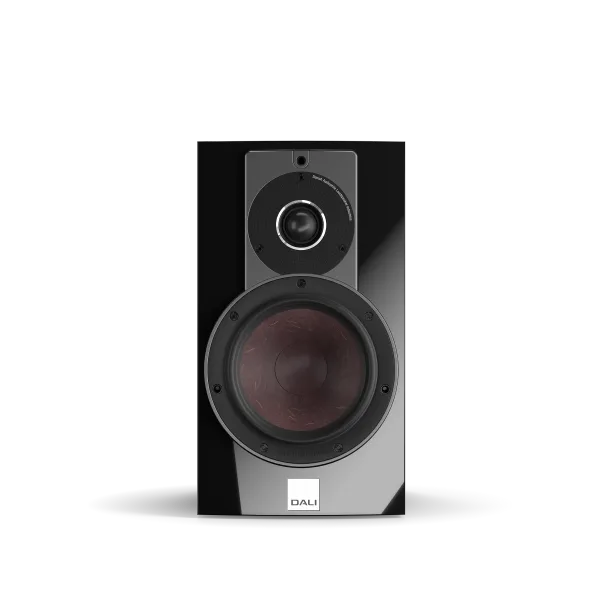

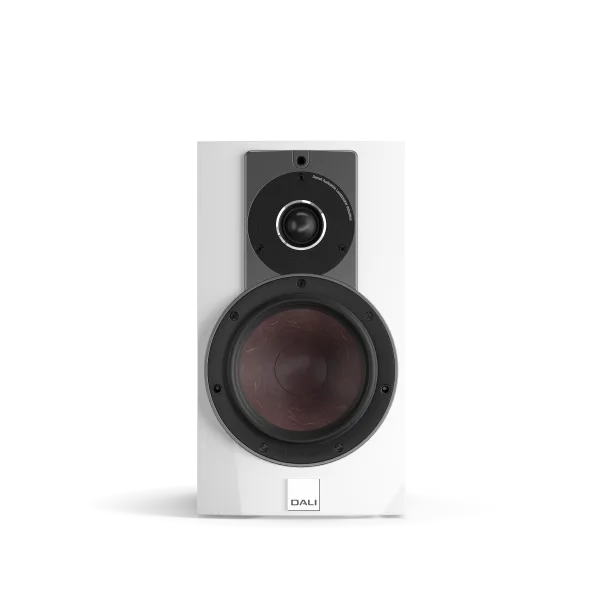

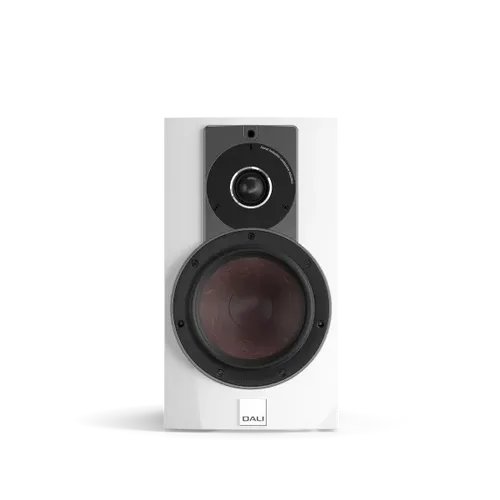

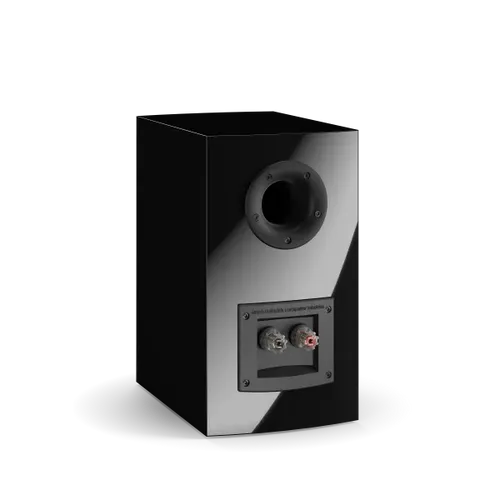

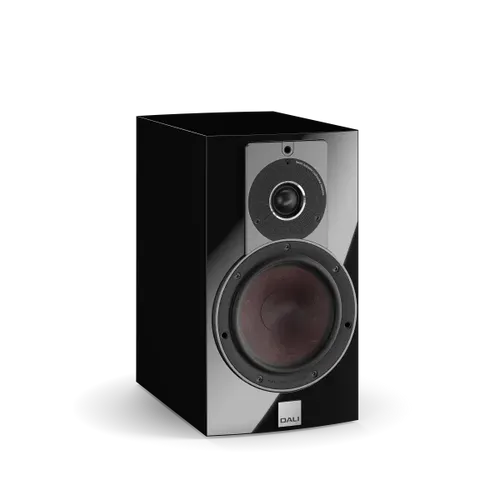

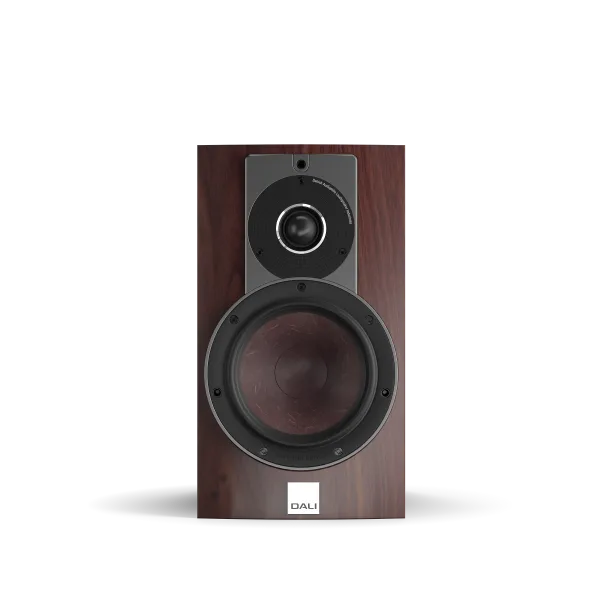

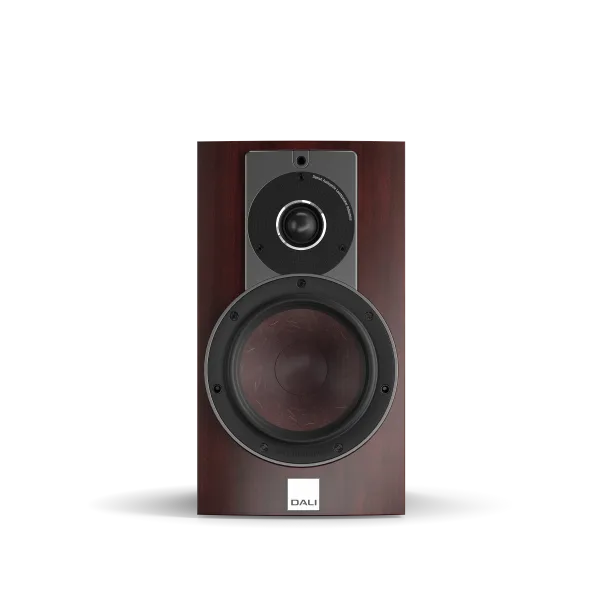

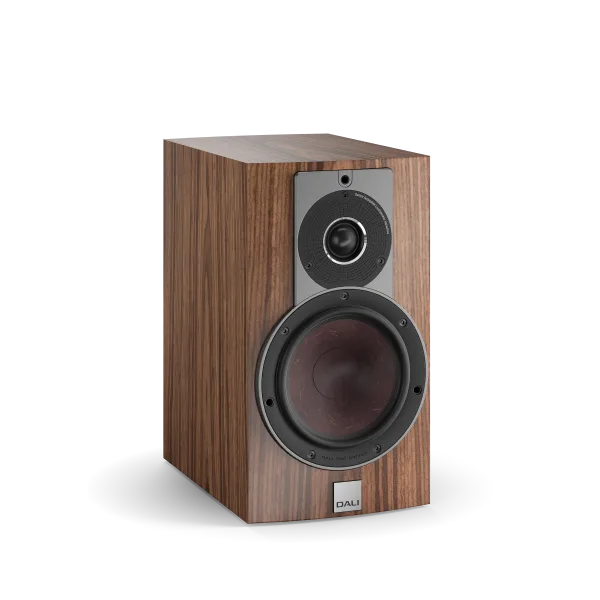

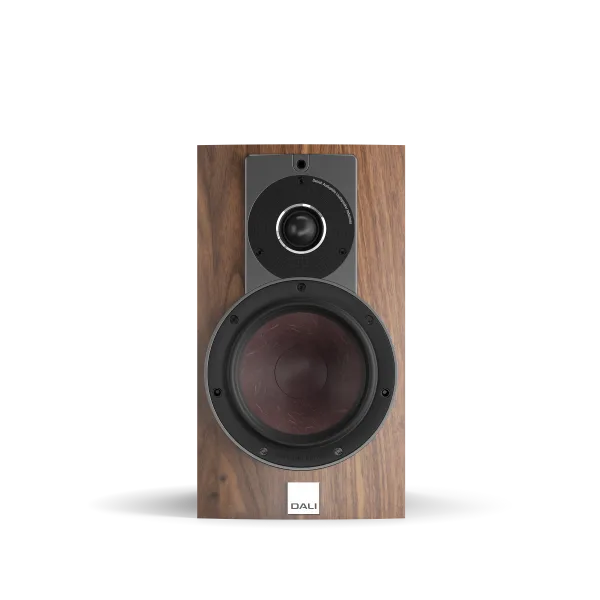

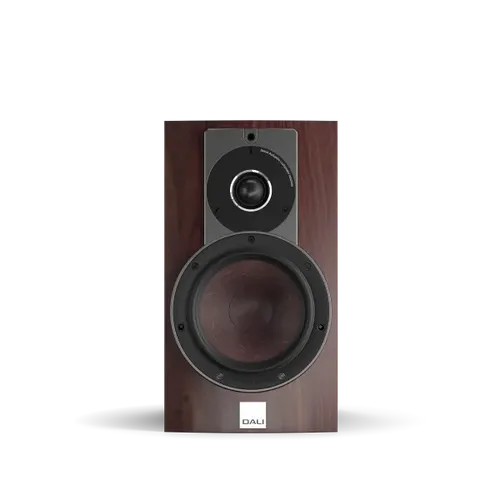

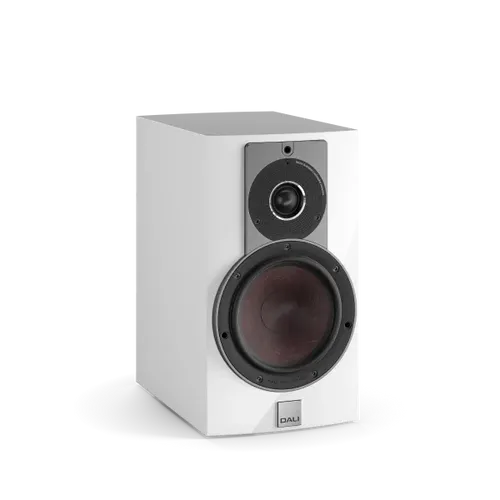

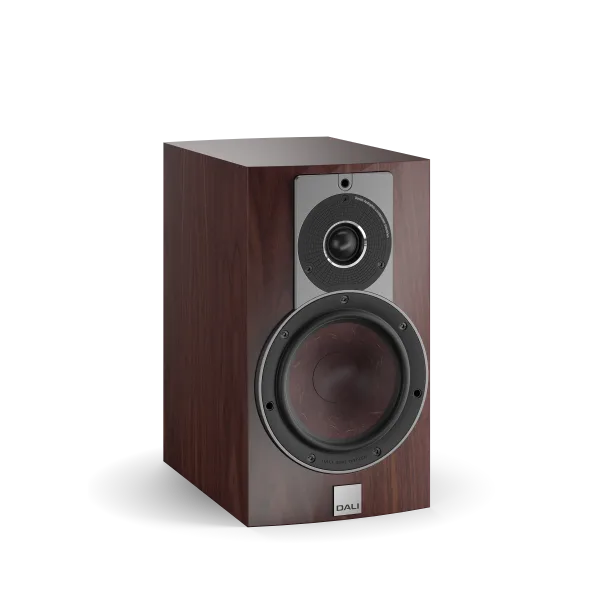

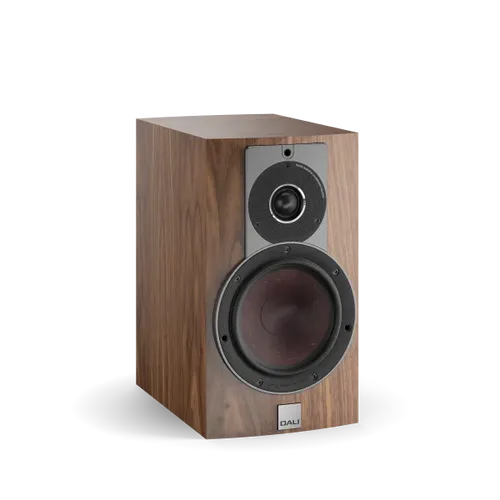

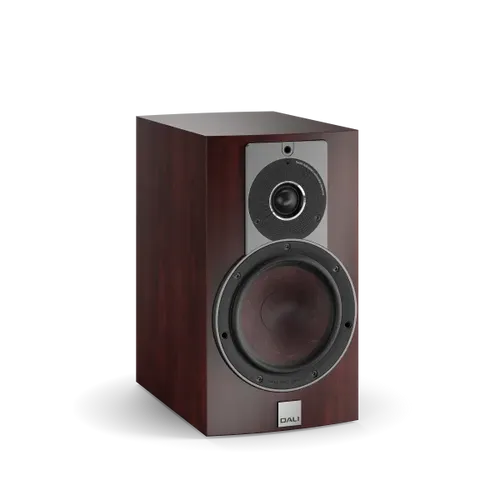

The RUBICON 2 builds on the design language of the popular MENTOR MENUET and takes it to new heights. This stand-mount speaker is the perfect blend of compact size and large sound performance. The solid wood laminate cabinet is the perfect working environment for the ultra-light 29 mm soft dome tweeter, 6½" low-loss wood fibre driver and gold-plated terminals. The RUBICON 2 is available in four finishes – High-Gloss White, High-Gloss Black, Rosso and Walnut.
Patented SMC
Reducing distortion with Soft Magnetic Compound.
The RUBICON 2 draws on the heritage from the SMC-based 'Linear Drive System', introduced with the EPICON series. With SMC, we achieve extremely low distortion and maximise detail, even at low volume. The drivers are manufactured in-house at our production facilities in central Denmark and feature the latest in magnet motor technology. The RUBICON 2 sets new audio quality standards for Hi-Fi lovers around the world.
Oversized Tweeter
A 29 mm driver for a broader bandwidth.
The ultra-lightweight 29 mm soft dome tweeter used in the RUBICON 2 reaches higher into the very high frequencies – higher, in fact, than the soft dome used in our signature hybrid tweeter module. And to achieve a broader bandwidth, the tweeter includes a light, agile voice-coil driven by a powerful ferrite magnet.
6½" Woofer
Drawing on technologies from our EPICON series.
The woofer cone has a light, rigid and randomly uneven structure, which lowers the complexity of the central part of the motor, ensures piston-like movement, significantly reduces the possibility of surface resonance and minimises distortion. Designed specifically for the RUBICON 2, the soft, low-loss rubber surround includes a cast-aluminium chassis designed for maximum airflow around the cone and magnet system.
| Specifications |
| Frequency Range (+/-3 dB) |
50 Hz - 26 kHz |
| Sensitivity (2.83 V/1 m) |
87 dB |
| Nominal Impedance |
4 Ohms |
| Maximum SPL |
107 dB |
| Recommended Amplifier Power |
40 - 150 Watts |
| Crossover Frequency |
3,100 Hz |
| Crossover Principle |
2 Way |
| High Frequency Driver - Quantity |
1 x 29 mm |
| High Frequency Driver - Diaphragm Type |
Soft Textile Dome |
| Low Frequency Driver - Quantity |
1 x 6.5" (165 mm) |
| Low Frequency Driver - Diaphragm Type |
Wood Fibre Cone |
| Enclosure Type |

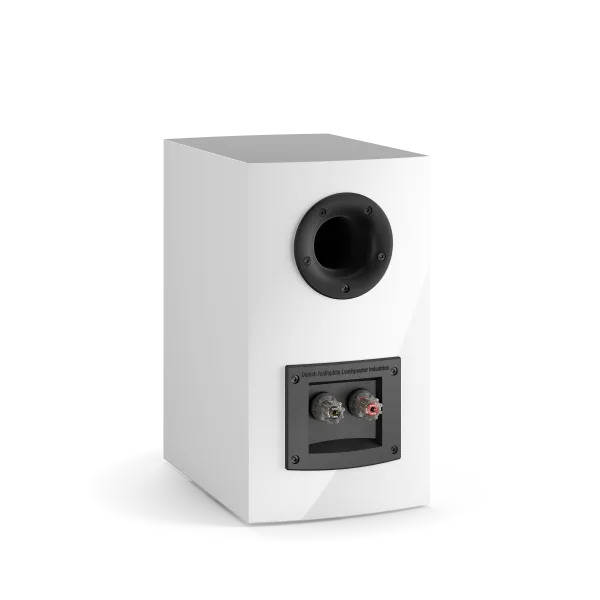

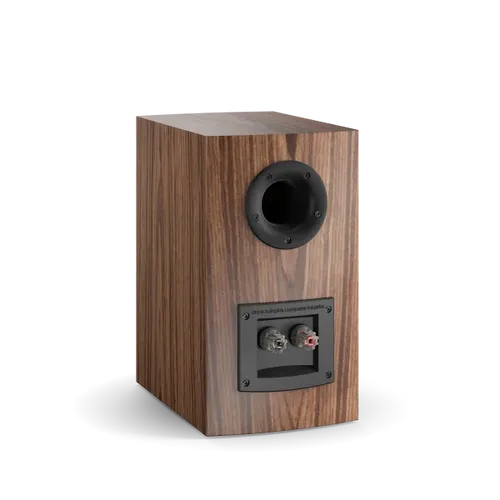

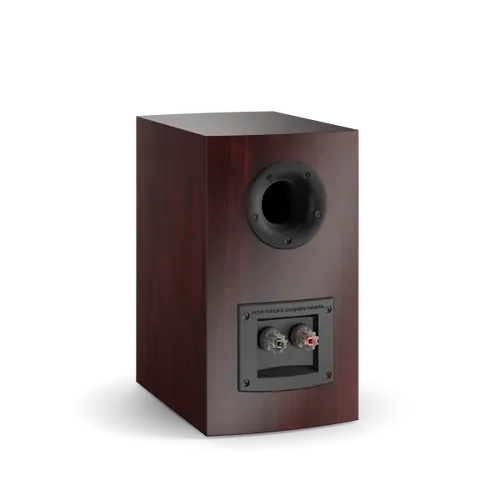

Bass Reflex |

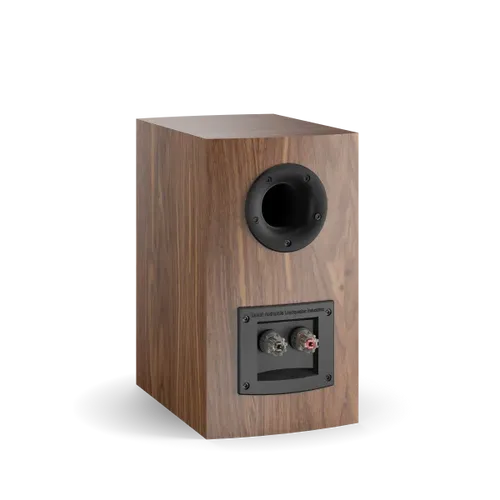

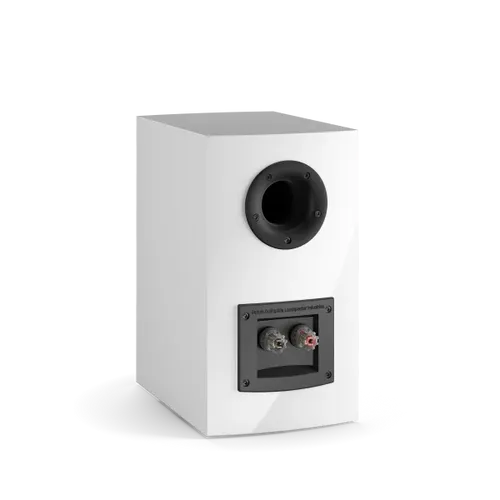

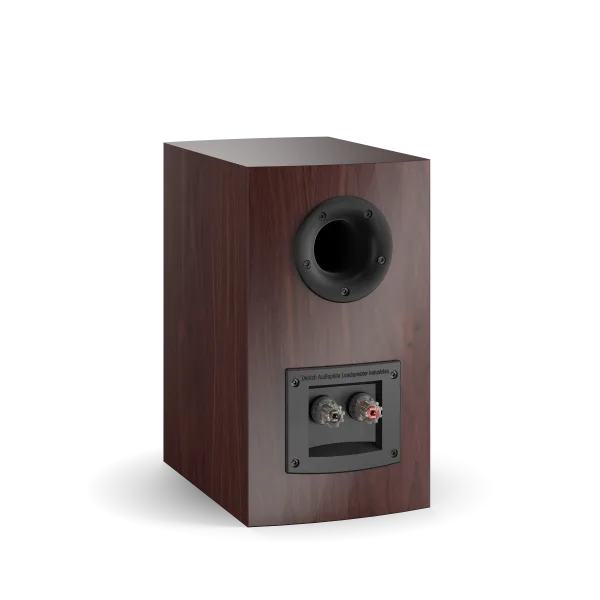

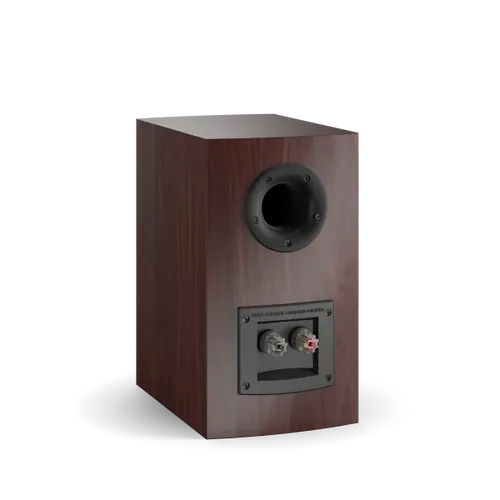

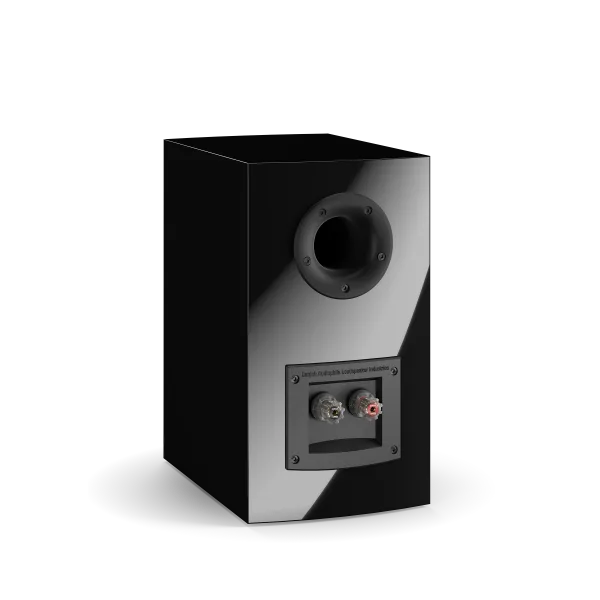

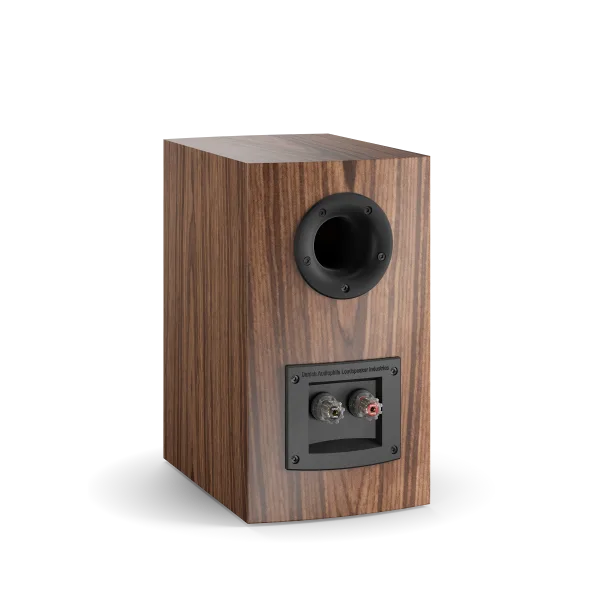

| Connection Input |
Single Wire |
| Magnetic Shielding |
No |
| Recommended Placement |
Shelf or Stand |
| Recommended Distance From Wall |
20 - 120 cm |
| Dimensions with Base (H x W x D) |
353 x 195 x 335 mm |
| Weight |
8.0 kg |
| Accessories Included |
Manual, Micro Fibre Cloth, Rubber Bumpers |
Compact Cabinet
Delivering richly defined detail and big bass response.
Small but perfectly formed, the RUBICON 2 stand-mount speaker may be the baby of the bunch, but the richly defined detail and big bass response belies its size. A perfect blend of compact size and internal volume, we believe we've created the ideal working environment to get the absolute best out of the drivers. And don't let its small footprint fool you, the RUBICON 2 is a performance powerhouse.
