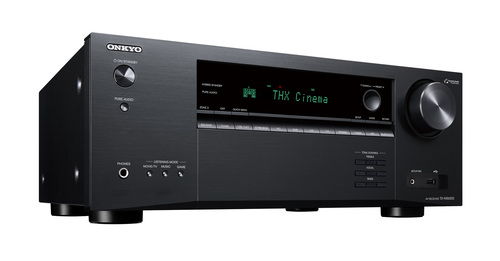

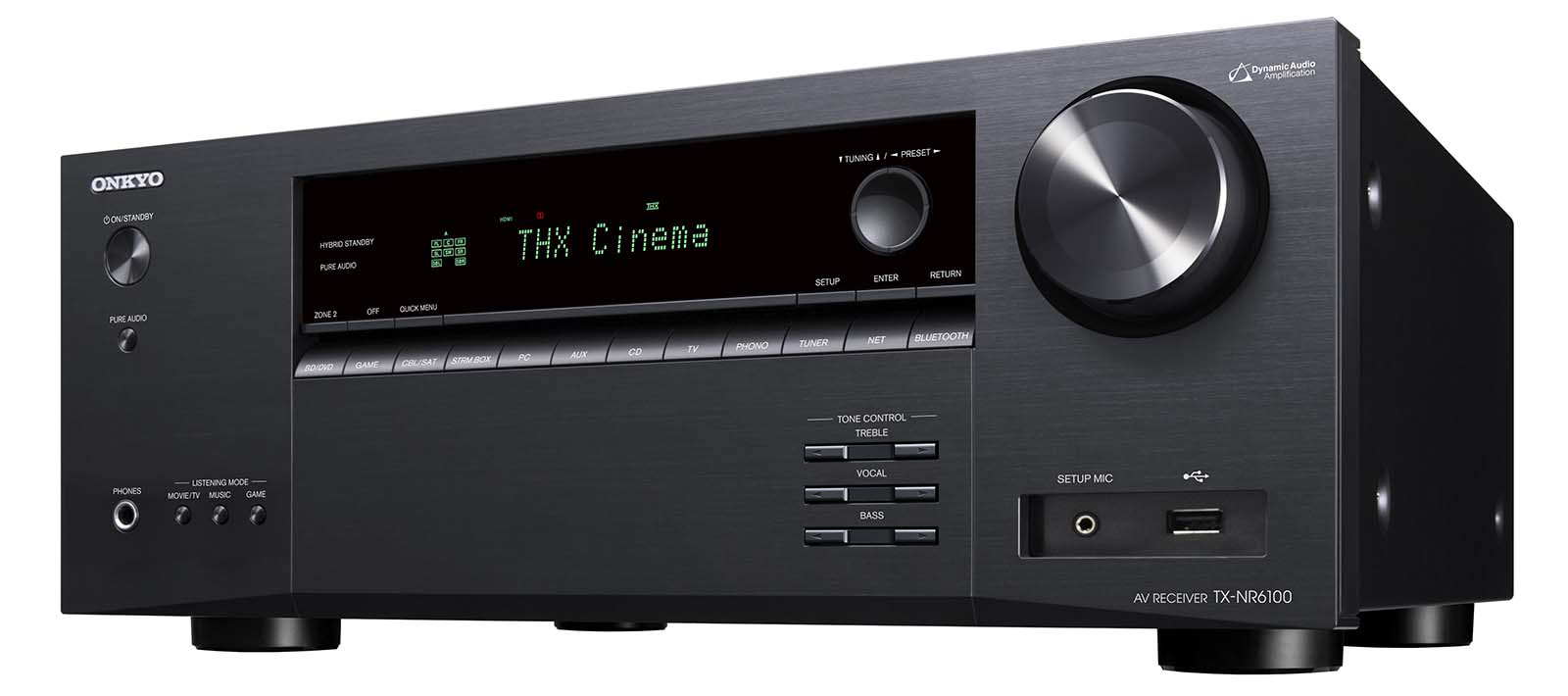

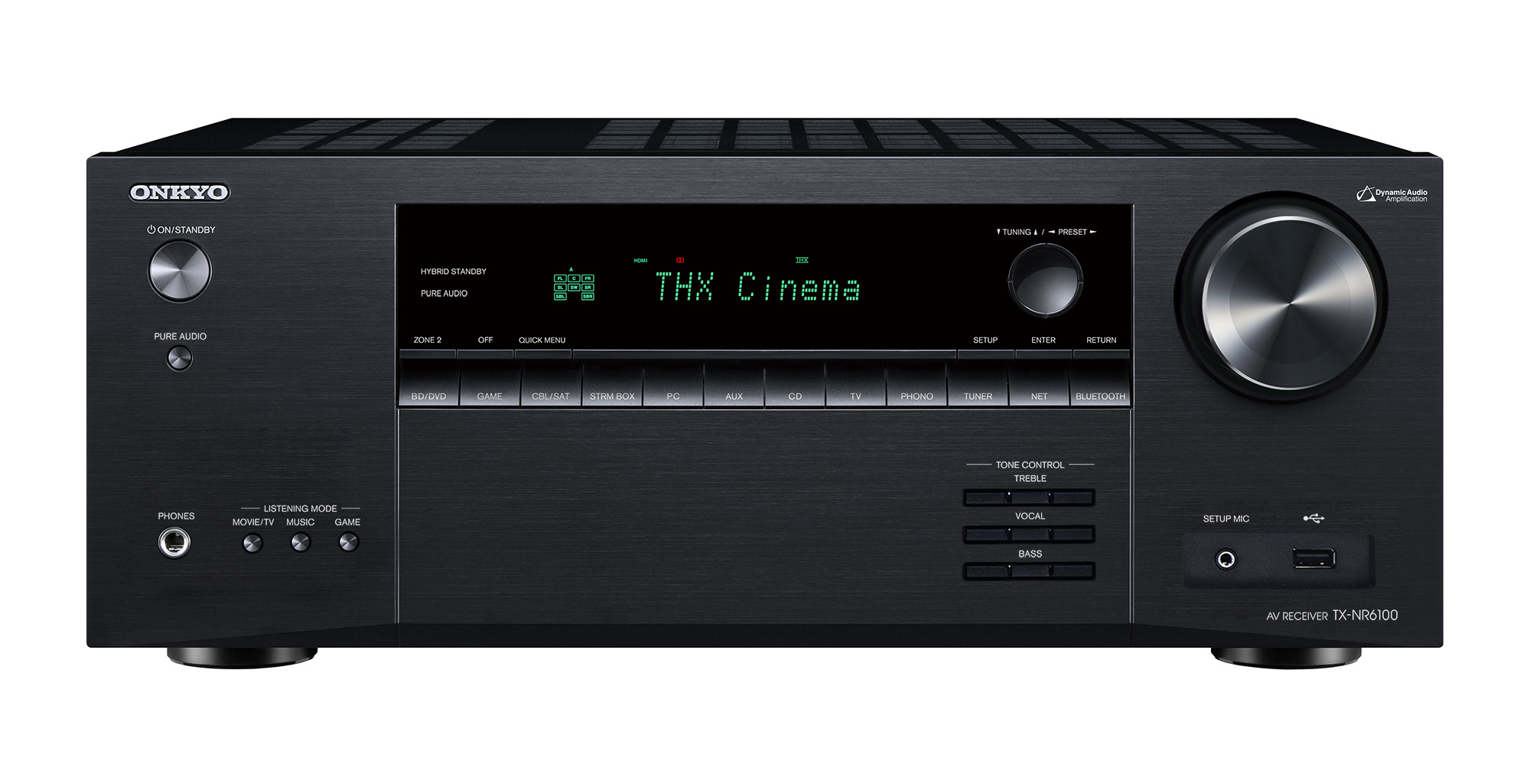

Onkyo TX-NR6100

Massive THX® sound and Film-Like 8K resolution

Rigorously tested to receive the coveted THX Select Certification, the Onkyo TX-NR6100 7.2-Channel AV Receiver delivers precision sound and images.

With an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. – ALLM (Auto Low Latency Mode) optimizes latency from source to screen – QFT (Quick Frame Transport) limits lag for a smoother experience.

Setting the bar for reference sound while bringing 8K video to your compatible display over HDMI® 2.1, you can enjoy Dolby Atmos® and DTS: X® soundtracks through your height-enabled surround system or use upmixing and virtualization solutions from DTS® and Dolby® to create a 3D sound-field from any layout.

Featuring three HDMI outputs and 100 watts of power per channel, the TX-NR6100 AV receiver delivers uncompressed HDMI 2.1 8K 60Hz and 4K/120Hz with HDR over 40 gbps, increasing the bandwidth over its predecessors. This SMART AV Receiver™ delivers an unparalleled movie, music, and gaming experience to your living room.

 AMPLIFIER FEATURES
• 210 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven),
100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC)
• THX Certified Select
• Onkyo Dynamic Audio Amplification (DAA)
• Discrete 2-stage non-phase-shift amplifier circuitry
• Custom High-Current Low-Noise Power Transformer
• Large custom-made audio-grade power capacitors
• Strengthened power supply line supports high-current dynamics
• Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp
grounds and power lines
• Isolated network module reduces high-frequency signal interference on
audio circuitry
• High current capability drives 4-ohm loads through 7 channels
• Precision 192 kHz/24-bit D/A conversion for Hi-Res Audio
• VLSC™ (Vector Linear Shaping Circuitry) filtering (Front L/R)
• PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
• Tone controls (bass/treble) for front L/R channels
VIDEO & AUDIO SUPPORT
• Supports features defined in HDMI 2.1*7 specification including
8K/60p(4:4:4/12-bit*8, 4:2:2/12-bit*8, 4:2:0/10-bit), 8K/30p(4:4:4/12-bit*8,
4:4:4/10-bit, 4:2:2/12-bit), 4K/120p(4:4:4/12-bit*8, 4:4:4/10-bit, 4:2:2/12-
bit) video passthrough, VRR, ALLM, QFT (Quick Frame Transport),
DSC (Display Stream Compression), QMS (Quick Media Switching)
and eARC (Main Out); supports HDR10+, Dolby Vision™, HDR10, and
HLG, and BT.2020 color; DeepColor™, x.v.Color™, LipSync, and HDCP
2.3
• Dolby Atmos, DTS:X, Dolby® TrueHD, and DTS-HD
Master Audio® decoding
• Dolby Atmos Height Virtualizer and DTS Virtual:X 3D processing
• Dolby Surround® and DTS® Neural:X 3D upmixing technologies
• Hi-Res Audio playback via network and USB including DSD256,
DSD128, DSD64 (DSDIFF/DSF) and 192 kHz/24-bit FLAC, ALAC,
WAV (RIFF), and AIFF*9
• SACD (Super Audio CD) playback via HDMI
(2.8 MHz 2-ch/multichannel)
• THX® listening modes for movies, music, and games
• Theater-Dimensional virtual surround-sound function
• Sound optimization for games (Rock, Sports, Action, and RPG)
• Direct Mode and Pure Audio Mode
NETWORK FEATURES
• SMART AV Receiver multi-room platform with integrated streaming
services, voice assistant support, and control via remote apps
• Fast quad-core SoC supports 802.11ac (2x2 MIMO) Wi-Fi
• Works with Sonos for the Sonos Home Sound System with Sonos
app*10
• Works with Alexa supporting multi-room music*11
• Works with Hey Google and Chromecast built-in
• Supports Apple AirPlay 2 enabling Siri voice control
• DTS Play-Fi multi-room audio via Onkyo Music Control App*10
• Control and manage multiroom playback with Onkyo Controller app*10
• Roon Tested certification for the Roon Core
• IP Control for setup via PC and integration into a home
automation system

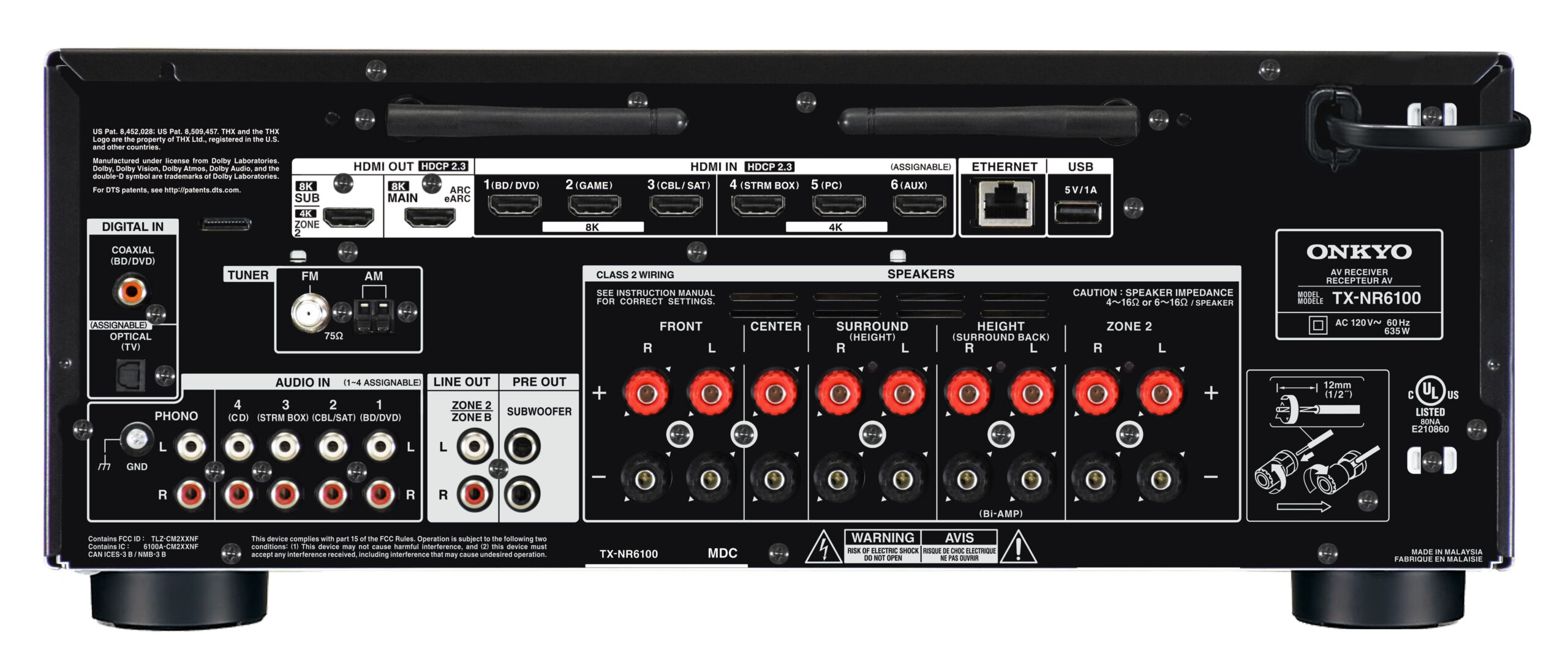

CONNECTION FEATURES
• 6 HDMI inputs and 2 outputs (Main Out [eARC], Sub/Zone 2 Out)
• 2 digital audio inputs (optical and coaxial, assignable)
• 4 analog RCA audio inputs (assignable)
• 1 phono input with built-in MM phono equalizer
• 1/8˝ (3.5 mm) mic input for AccuEQ setup
• 1/4˝ (6.35 mm) headphone jack
• 2 subwoofer pre-outs
• Zone 2/Zone B analog RCA line-level out
• 9 banana-plug-ready speaker posts (including dedicated Zone 2 posts)
• 10BASE-T/100BASE-TX Ethernet terminal for network connection
• USB inputs (front:DC 5 V/500 mA, rear:DC 5 V/1 A) for audio
playback
ADVANCED FEATURES
• AccuEQ Room Acoustic Calibration with AccuReflex and
subwoofer EQ
• Bluetooth wireless technology supports audio reception from mobile
devices and PC, audio transmission to supported headphones
(RX mode: SBC/AAC, TX mode: SBC/aptX/aptX HD)
• Advanced Music Optimizer™ improves compressed audio
playback quality
• Wake on Play standby for Bluetooth and Network with auto
input-switching
• Vocal Enhancer boosts vocals/dialog audibility via remote control or
front panel keys
• FM/AM tuner with 40 random station memory presets
• Zone 2 DAC for independent D/A audio distribution (HDMI/SPDIF/NET)
• 7.2-ch/5.2.2-ch speaker layout connection with 5.2-ch + Zone 2
switching
• Zone 2 line-out*12 connects compatible components for independent or
synced D/A playback (including HDMI/SPDIF/NET*6)
• Zone B line-out*12 connects compatible wireless headphone docks
for synced playback with MAIN Zone*6
• Switch from Front L/R speakers to Height/Surround/Surround Back
speakers using Stereo Assign Mode*13 for BGM listening
• My Input Volume one-touch startup volume assignment to
individual inputs
• High-definition GUI with overlaid OSD over HDMI
• 4K to 8K, 1080p to 8K/4K video upscaling via HDMI
• OSD function shows source data and playback settings
• Crossover adjustment for each channel
(40/50/60/70/80/90/100/120/150/180/200 Hz)
• A/V Sync Control (up to 500 ms in 5 ms steps at 48 kHz*14)
• Various standby modes and HDMI pass-through
• 3-Mode display dimmer (Normal/Dim/Dimmer)
