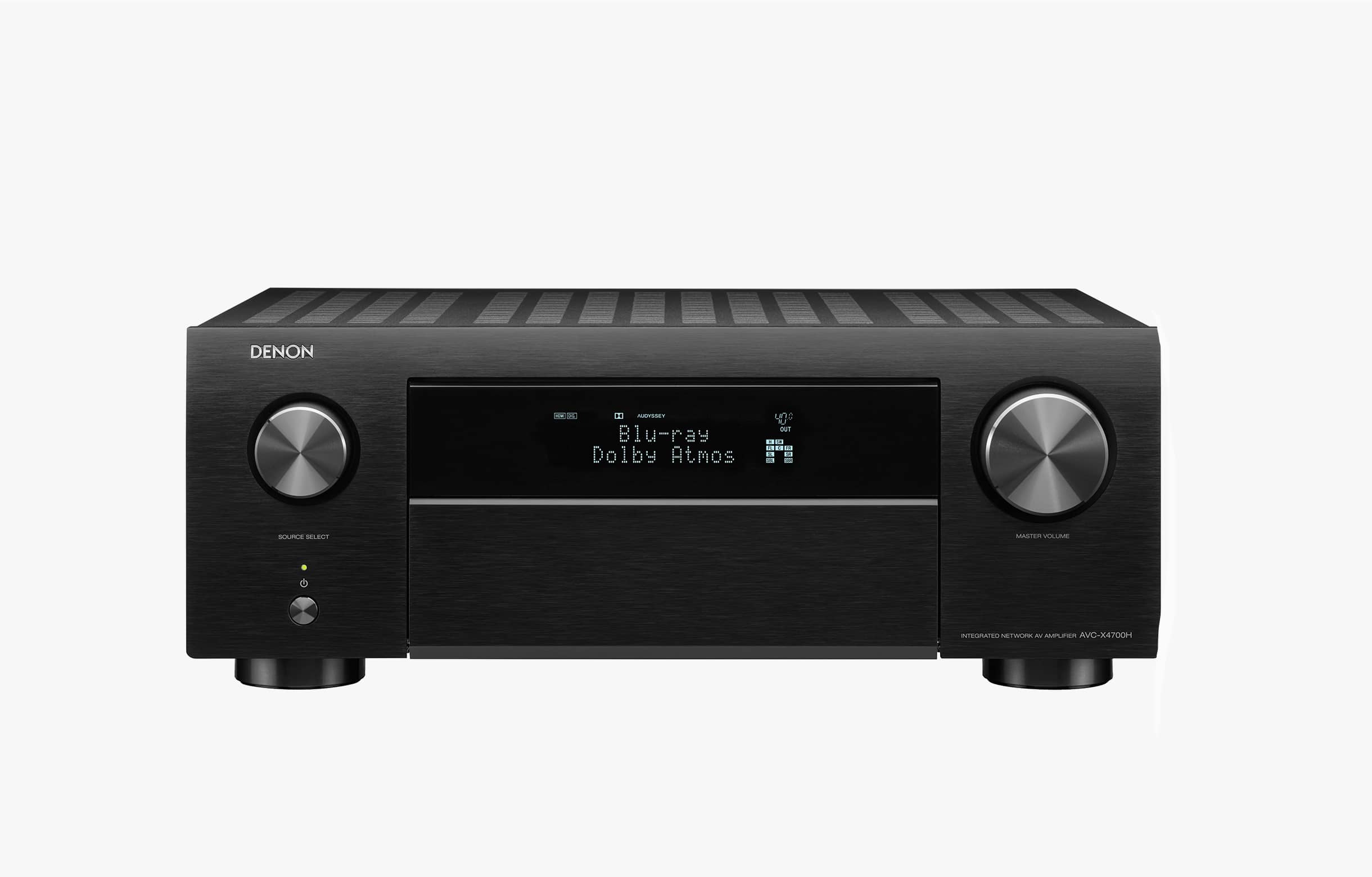

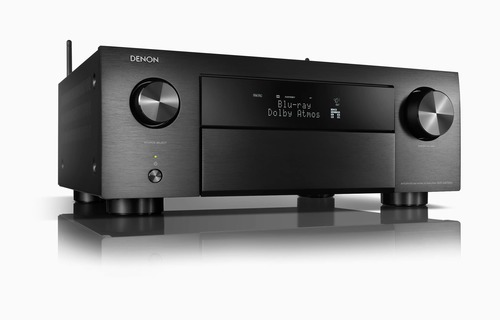

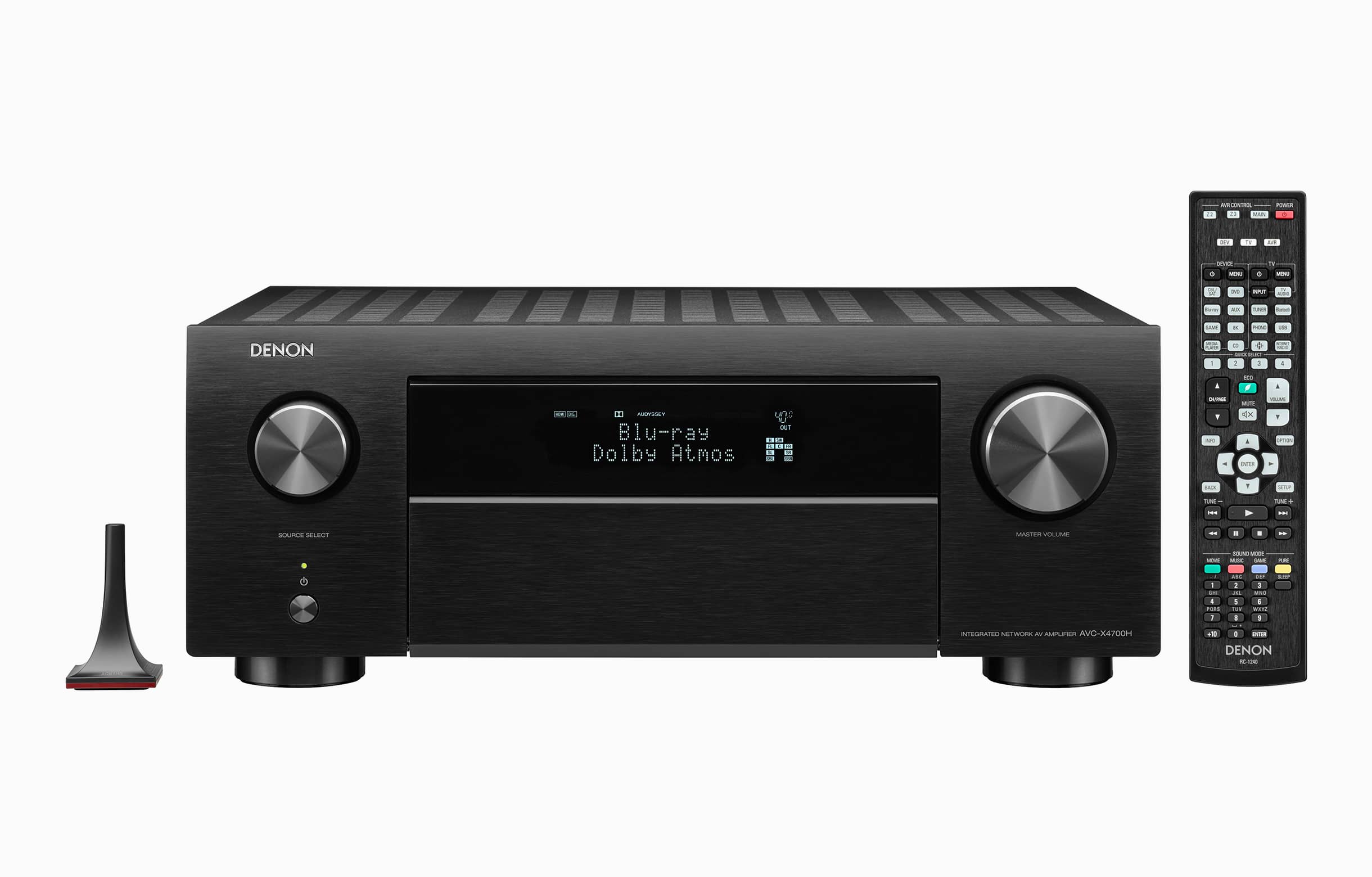

Denon AVCX4700H 9.2ch 8K AV Amplifier with 3D Audio, HEOS Built-in and Voice Control
This 9.2 channel 8K AV Amplifier with 180W per channel fully supports Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X and IMAX Enhanced, as well as the latest HDMI specifications such as 8K/60Hz, 4K/120Hz pass-through, VRR, ALLM, Dynamic HDR, HDR10+ and eARC support.
Discover a new world of home entertainment with the new Denon AVC-X4700H. Nine discrete, identical amplifiers rated at 200W each, and 11.2 channel processing capability with two ADI Griffing Lite DSPs will let your home cinema shine in breathtaking Dolby Atmos, DTS:X, IMAX Enhanced and Auro-3D immersive surround sound. The AVC-X4700H supports the latest HDMI video technologies such as 8K/60Hz and 4K/120Hz pass-through, Dolby Vision, HDR10, HDR10+, Dynamic HDR, HLG, as well as 8K upscaling and HDCP 2.3 support on all HDMI inputs (8 in/3 out).
Stream popular music services like Spotify, TuneIn Internet Radio, Amazon Music HD, TIDAL and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS Built-in. Enjoy your MP3 collection and even Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6 MHz files) via USB or Network. The Denon AVC-X4700H works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control.
By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get set up right the first time. Every home theatre is different — that’s why Denon uses the premium Audyssey MultEQ XT32 room calibration technology from Audyssey that automatically measures and optimizes your AV amplifier to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.
ULTIMATE HOME THEATRE EXPERIENCE - 8K READY
The AVC-X4700H delivers the ultimate home theatre experience with 8K/60Hz pass-through and upscaling, 4K/120Hz pass-through for gaming, and support for the latest HDMI specifications. The new AVC-X4700H lets you build the best 4K home theatre today and gives you the comfort of knowing that your AV amplifier is 8K ready when you are. Enjoy the highest quality 3D audio and video for even the most demanding entertainment needs.
Amplifier
| Channels |
9.2
Object-Based Configuration: 5.1.4
Object-Based Configuration: 7.1.2
With External Amplifier: 11.2 |
| Power Output per Channel |
2-Channel Driven:
125 W at 8 Ohms / 20 Hz to 20 kHz / 0.05% THD
165 W at 6 Ohms / 1 kHz / 0.7% THD
1-Channel Driven:
200 W at 6 Ohms / 1 kHz / 1% THD
235 W at 6 Ohms / 1 kHz / 10% THD |
| Frequency Response |
10 Hz to 100 kHz +1/-3 dB (Direct Mode) |
| Speaker Impedance |
4 to 16 Ohms |
Audio Processing
| DTS Compatibility |
DTS-HD Master Audio, DTS:X |
| Dolby Compatibility |
Dolby Atmos, Dolby Pro Logic IIz, Dolby TrueHD |
| Auro 3D Support |
Yes |
| Upmixing Technology |
Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology |
| Supported File Formats |
AAC, ALAC, DSD, FLAC, MP3, WAV, WMA |
Video
| HDR Compatibility |
HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| Pass-Through Support |
8K60p 4:4:4 (3D, BT.2020) |
| Upscaling |
8K UHD |
| GUI |
Yes |

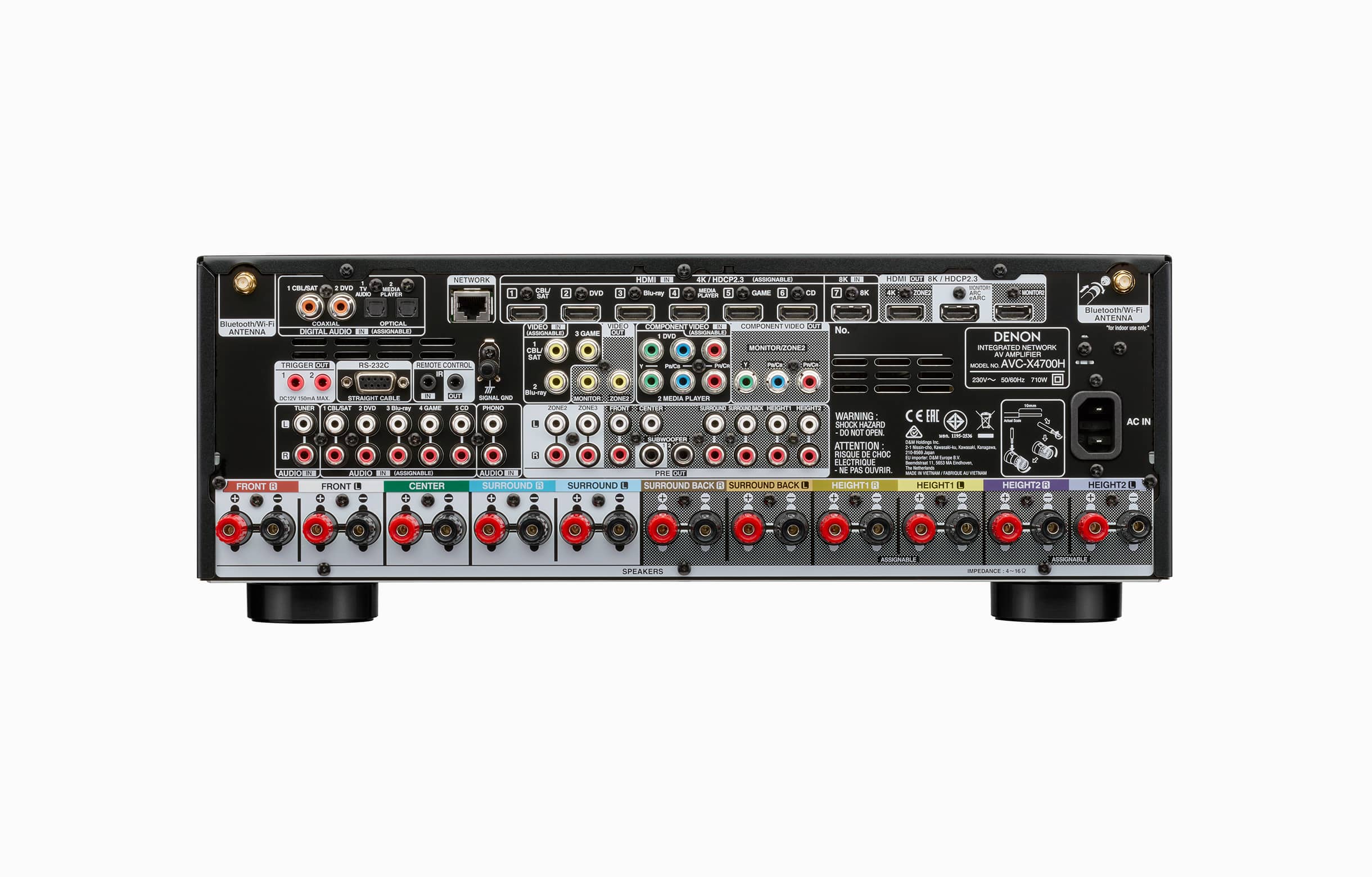

Connectivity
| Rear A/V Inputs |
7 x HDMI
2 x 3RCA Component
3 x RCA Composite
2 x Optical TOSLINK
2 x Digital Coaxial
5 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw |
| Rear A/V Outputs |
3 x HDMI
1 x 3RCA Component
2 x RCA Composite
2 x RCA Subwoofer
1 x 11-Channel RCA Pre-Out
1 x Stereo RCA Zone 2 Pre-Out
1 x Stereo RCA Zone 3 Pre-Out |
| Front I/O |
1 x HDMI Input
1 x USB Type-A Input
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input |
| Other Rear I/O |
2 x Bluetooth/Wi-Fi Antenna Terminal Input
1 x AM Antenna Terminal Input
1 x FM Antenna Terminal Input
1 x RJ45 (Ethernet)
1 x DE-9 (RS-232C)
2 x 1/8" / 3.5 mm (12 V Trigger) Output
1 x 1/8" / 3.5 mm (IR) Input
1 x 1/8" / 3.5 mm (IR) Output |
| Speaker Connectors |
11 x Binding Post Pairs |
| HDCP Support |
Version 2.3 |
| Audio Return Channel (ARC) |
Yes, eARC |
| HDMI CEC |
Yes |
| Input Impedance |
47 Kilohms |
| Input Sensitivity |
200 mV |
| Signal to Noise Ratio |
102 dB (Direct Mode / IHF-A) |
Wireless Connectivity
| Wireless Audio Protocols |
AirPlay 2, HEOS |
Control
| Virtual Assistant |
Works with Alexa, Apple AirPlay, Works with Google Assistant, Josh.ai |
Tuner Section
| Tuner Type |
AM, FM |
| Radio Frequencies |
AM: 520 to 1710 kHz
FM: 87.5 to 107.9 MHz |
Power
| AC Input Power |
120 VAC, 60 Hz |
| Power Consumption |
Active: 710 W
No Sound (ECO Off): 110 W
No Sound (ECO On): 65 W
Network Standby: 3.5 W
CEC Standby: 0.5 W
Standby: 0.1 W |
Physical
| Dimensions (W x H x D) |
17.1 x 9.3 x 15.3" / 43.4 x 23.6 x 38.9 cm (Antenna Up)
17.1 x 6.6 x 15.3" / 43.4 x 16.8 x 38.9 cm (Antenna Down)
17.1 x 6.6 x 14.9" / 43.4 x 16.8 x 37.8 cm (Antenna Removed) |
| Weight |
30.2 lb / 13.7 kg |
