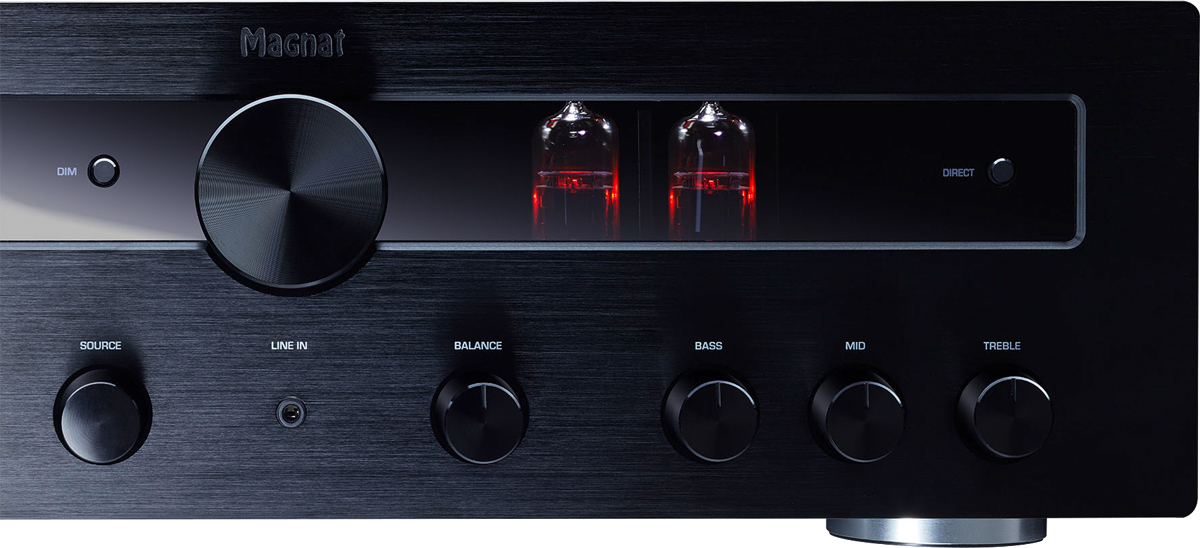

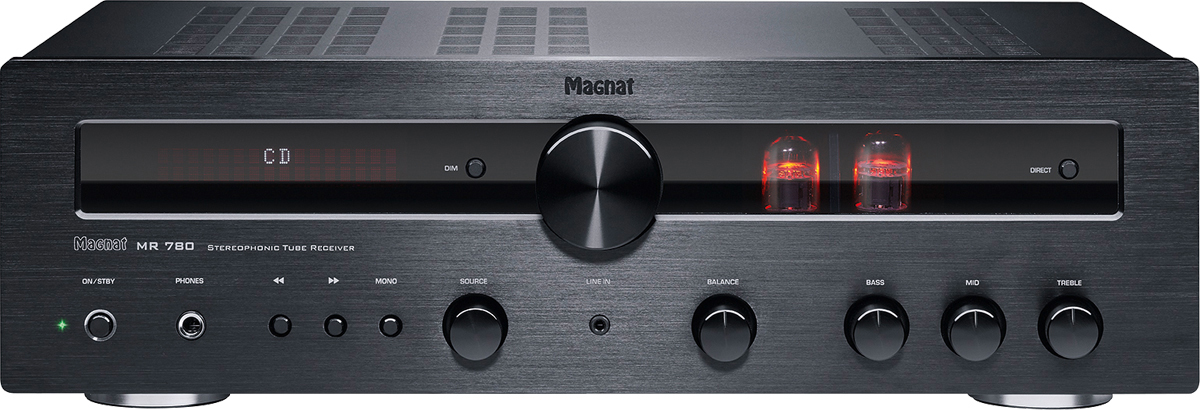

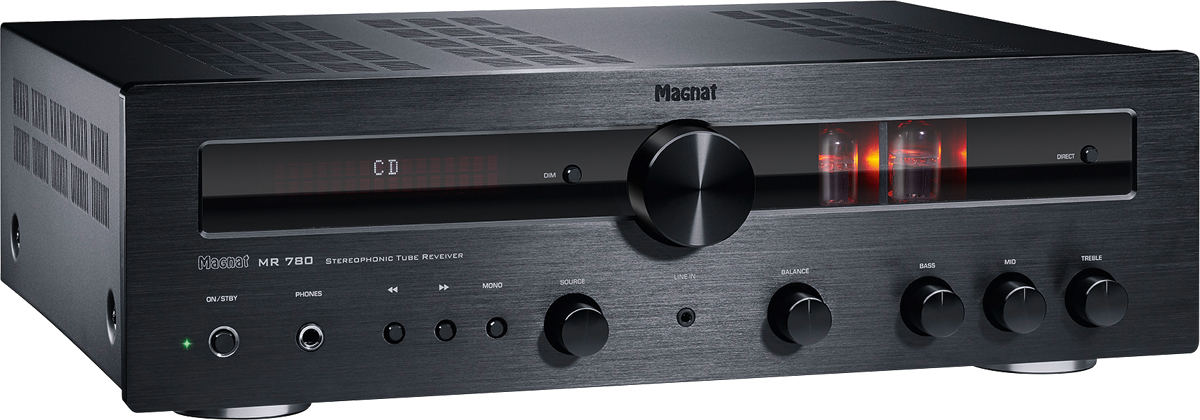

High-end hybrid receiver with tube preamplifier and a high-performance transistor output stage
High-quality DAB+/FM tuner
Analogue inputs incl. high-quality MM-phono input

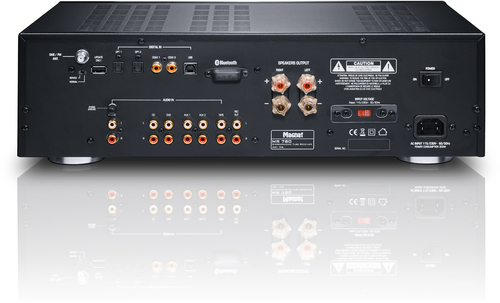

Digital input section with 2 optical and 2 coaxial inputs and 1 USB audio input
Sturdy full-metal enclosure with solid aluminium front plate and controls
FREQUENCY RANGE DAB/DAB+
174.928 – 239.2 MHz (Band III)
SENSITIVITY FM
-108 dBm
FREQUENCY RESPONSE
CD/Tuner/Aux/Line/Tape: 6 Hz – 90 kHz (-3,0 dB) 20 Hz – 20 kHz (+/-0,3 dB) Phono: 20 Hz – 20 kHz (+/-0,8 dB) Subsonic Filter : 16 Hz, 18 dB/Oct.
FREQUENCY RANGE FM
87.5 – 108 MHz
POWER CONSUMPTION
Max 300 W
INPUT SENSIVITY
Phono MM: 5 mV/47 kΩ
CD/Tuner/Aux/Line/Tape: 470 mV/100 kΩ
DIGITAL INPUTS
USB 2.0, type B connector
Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz
Supported bit depth: 16/24bits
2. coaxial (cinch)
1. optical (Toslink™)
BLUETOOTH® INPUT
Bluetooth® 4.0 / Qualcomm® aptX™
DIMENSIONS (WXHXD)
433 x 132 x 317 mm (360 mm incl. controls and connectors)
COLOR
Black
WEIGHT
8.9 kg
Bluetooth 4.0 streaming with high-end audio stanads upard aptX
