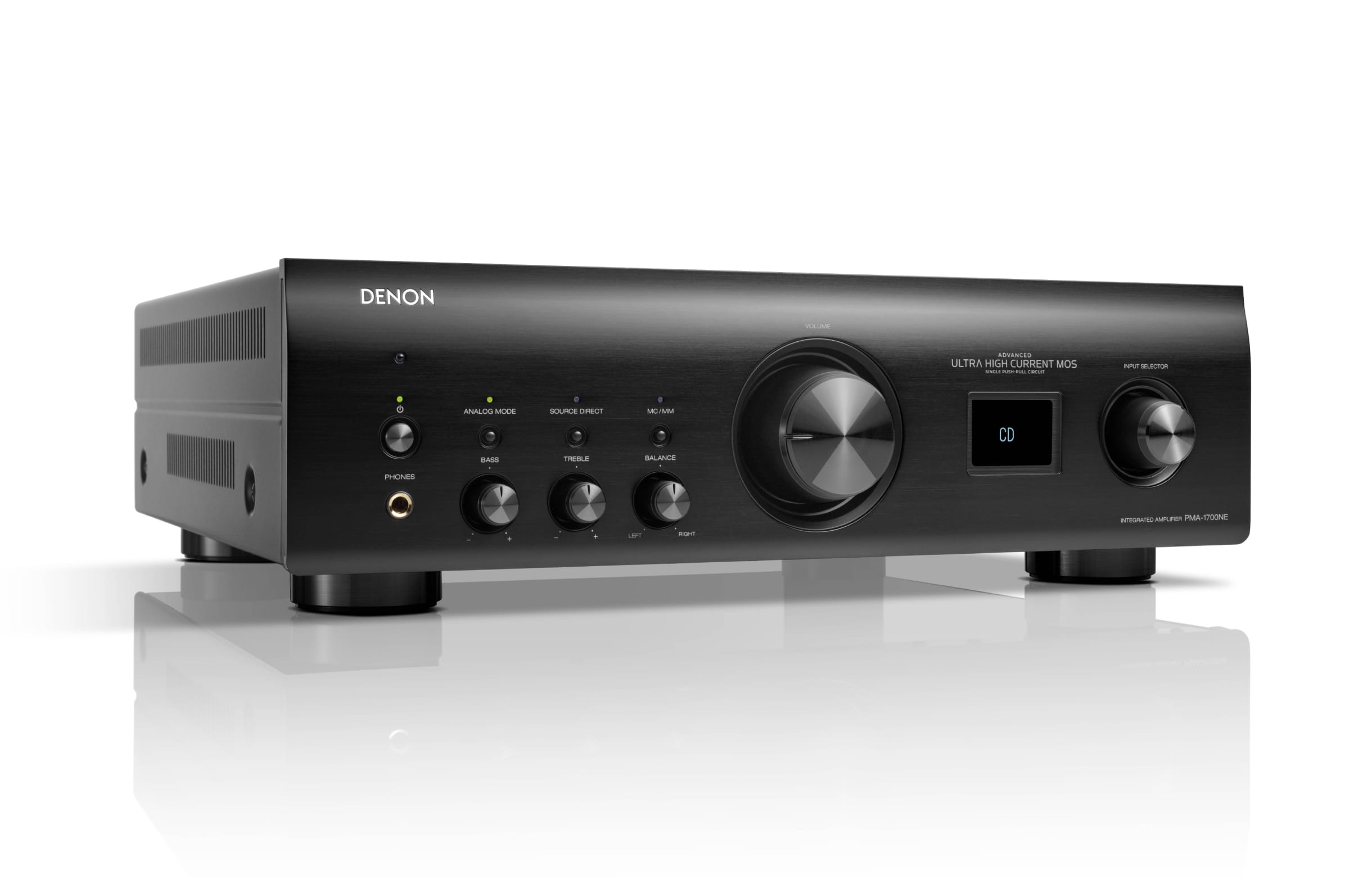

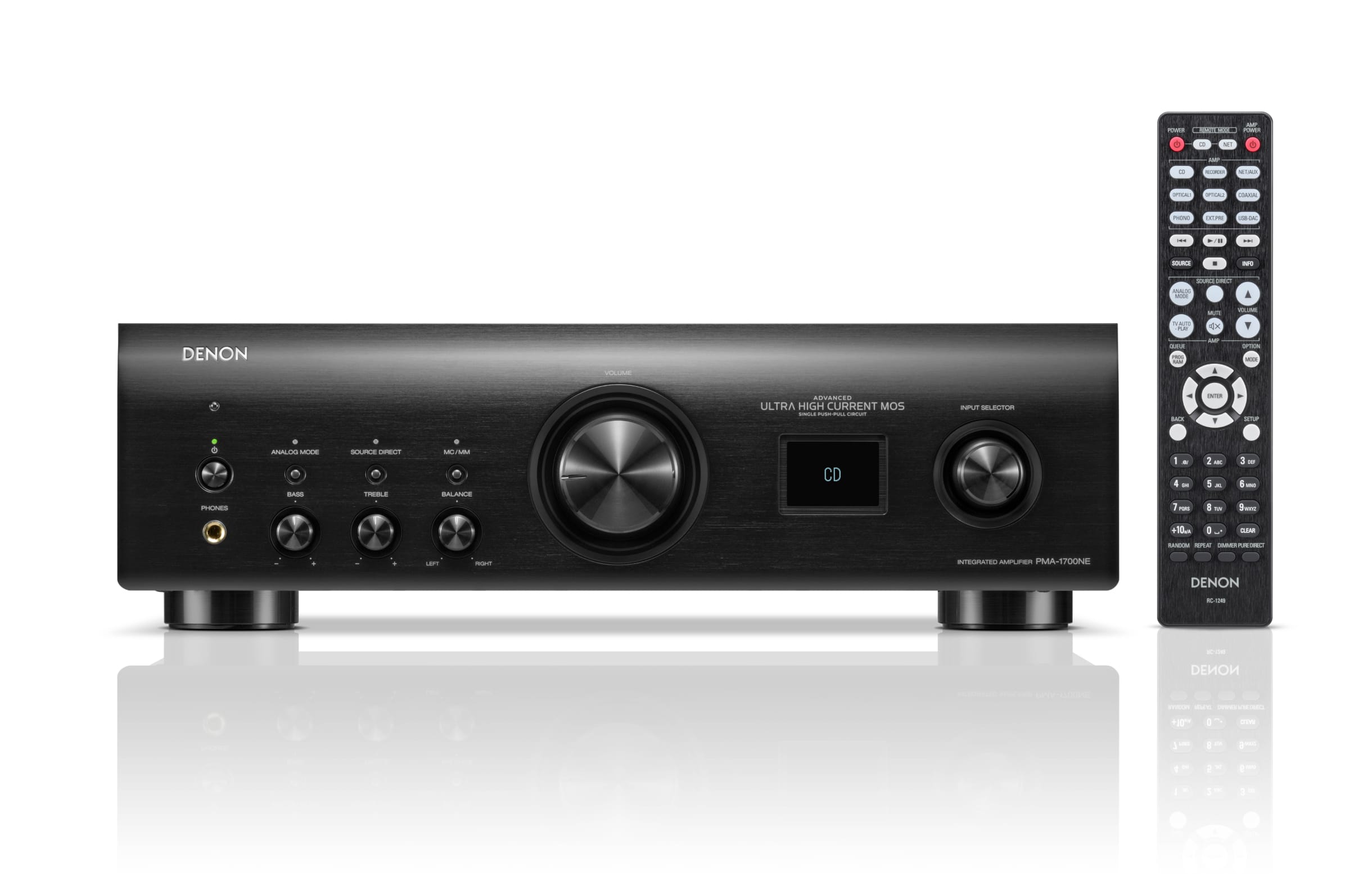

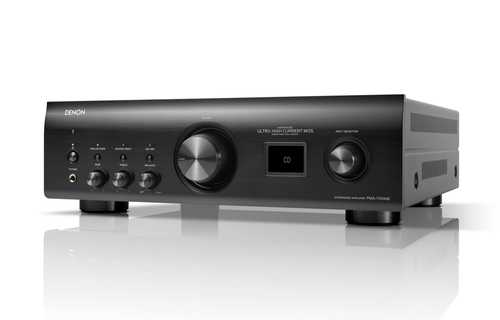

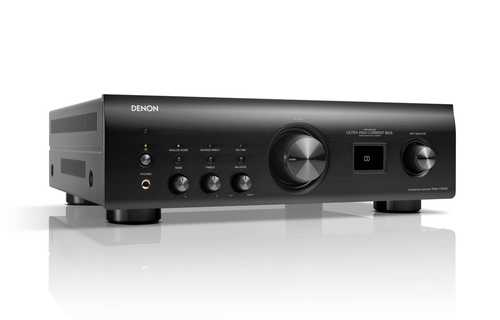

Denon PMA 1700 NE Integrated Amplifier with DAC and USB
High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of powerper-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.
Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports digital audio sources up to highresolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
PMA-1700NE provides USB-DAC function that supports high resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high quality DAC for an optimal D/A conversion with highest precision.
High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analogue feeling of operation. The unique mechanism offers smooth, linear control. A Source Direct function passes by all tone control for purest audio.
Specifikations
Unit (W x D x H): 434 x 410 x 135mm
17.1 x 16.1 x 5.3in
Cabinet Size (W x D x H): 434 x 374 x 135mm
17.1 x 14.7 x 5.3in
Net weight: 17.6kg
38.8lb
Packaging Dimensions (W x D x H): 548 x 520 x 249mm
21.6 x 20.5 x 9.8in
Packaging gross weight: 20.4kg
45lb
Carton Color: 2 Color
Cushion / Packing: 4 Separate / Sheet
Panel Color: SP / BK
Front (Center) Panel: Aluminum
Side cover: SECC with 4 straight emboss
Side screw: SP: Nickel / BK: Black

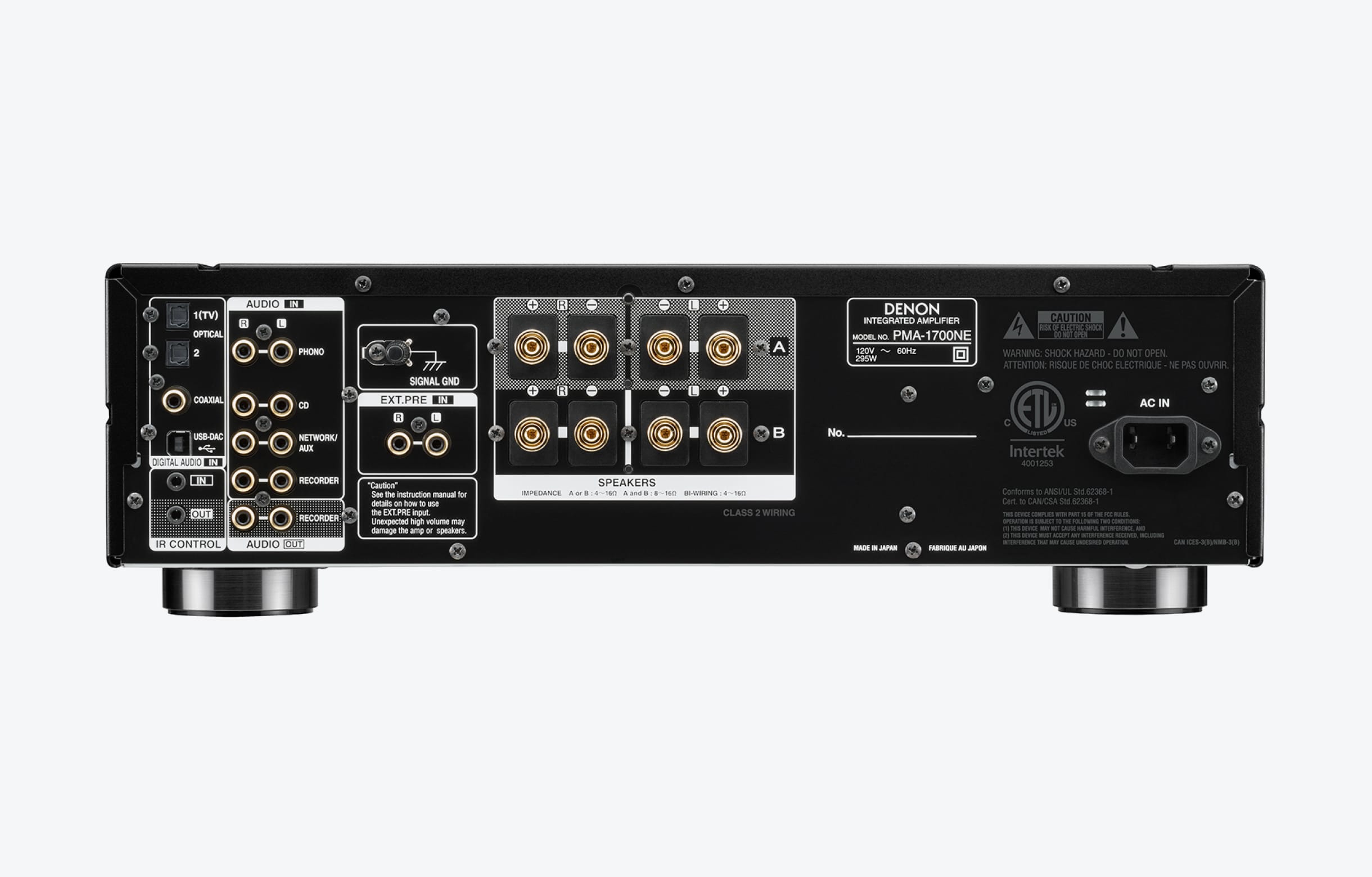

Rear Panel: SECC t1.0mm
Chassis Material: SECC t1.2mm
Bottom Layer: Single
Volume Knob: Aluminum
Input Selector: Aluminum
Bass/Treble/Balance/ Phono Sel knobs: Aluminum
Power button: Aluminum
Other knob/button (LOUDNESS, SOURCE DIRECT etc): Mold (Source Direct,Analog Mode,MM/MC)
Foot: ABS resin with rigid rib; w/Hot stamp; (H : 20mm)
Heatsink for Power Amplifier: Extruded Aluminum
