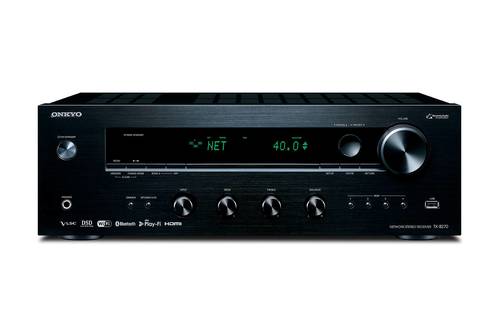

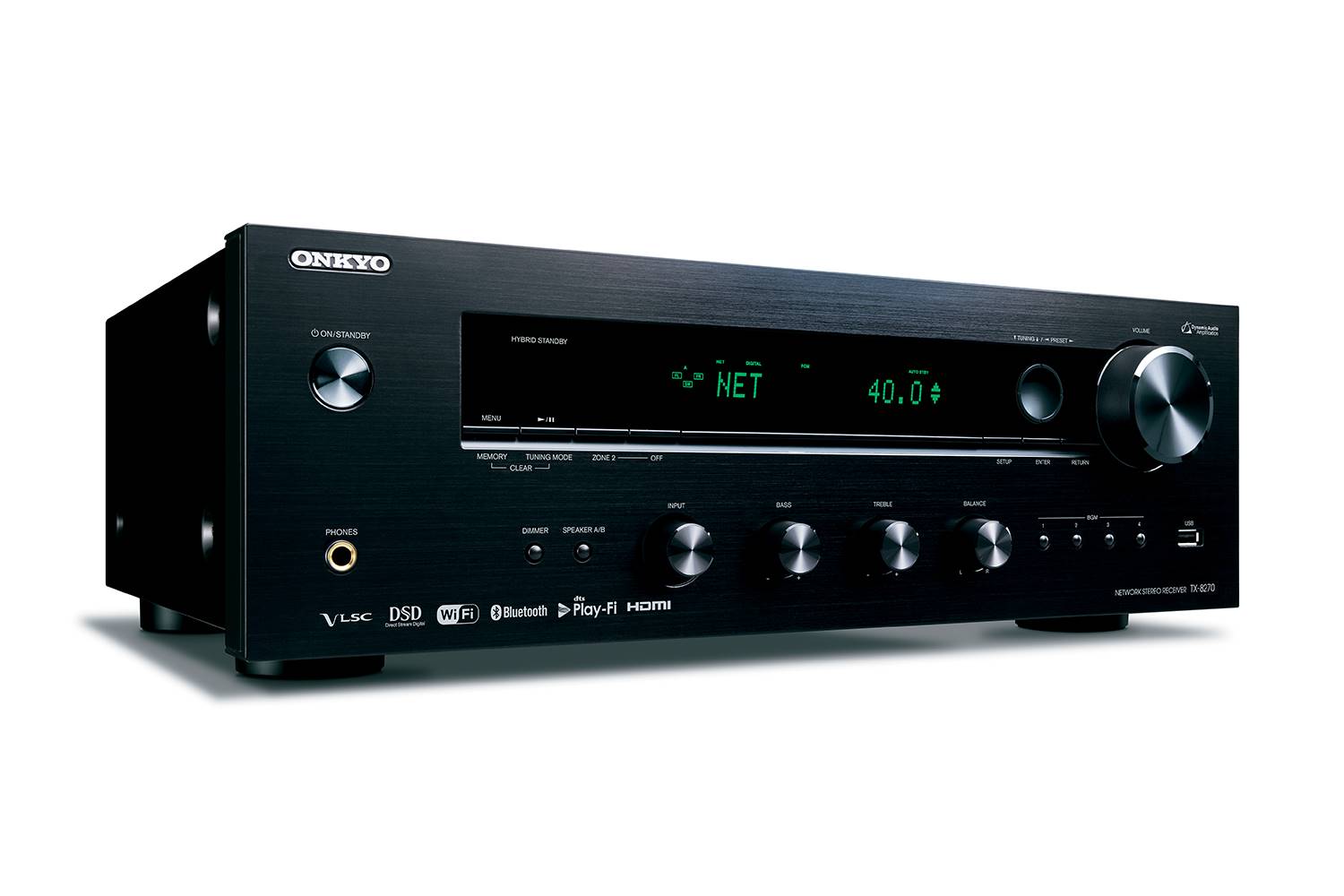

The TX-8270, is a beautifully engineered 100W/ ch network stereo receiver designed to maximize musical enjoyment and drive your favorite speakers. Built around a massive transformer, audio-grade capacitors, and discrete non-phase-shift circuitry locked into a robust chassis, this amp has high-current power to illuminate cherished vinyl to Hi-Res audio and unmatched connectivity options for audio components.
Works with Sonos
Dynamic Audio Amplification
Music Made Easy with Chromecast built-in
READY FOR DTS PLAY-FI®
Works with Sonos
This Onkyo receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Connect. The AVR ties into the Sonos ecosystem, waking, changing inputs, and playing at the desired volume on command from the Sonos app.
Dynamic Audio Amplification
Refined over 70 years to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete amp output stages. Unique topology prevents phase-shift while high current improves speaker control for true dynamic speed. Driving 4-ohm loads through all channels, DAA has power to move.
Music Made Easy with Chromecast built-in
Stream any music from your smartphone, laptop, or PC to your Onkyo receiver with ease. Control playback with Chromecast enabled apps you know and love from your iPhone, iPad, Android™ phone or tablet, Mac® or Windows® laptop, or Chromebook™.
READY FOR DTS PLAY-FI®
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room. Each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
Ready for 4K HDR entertainment

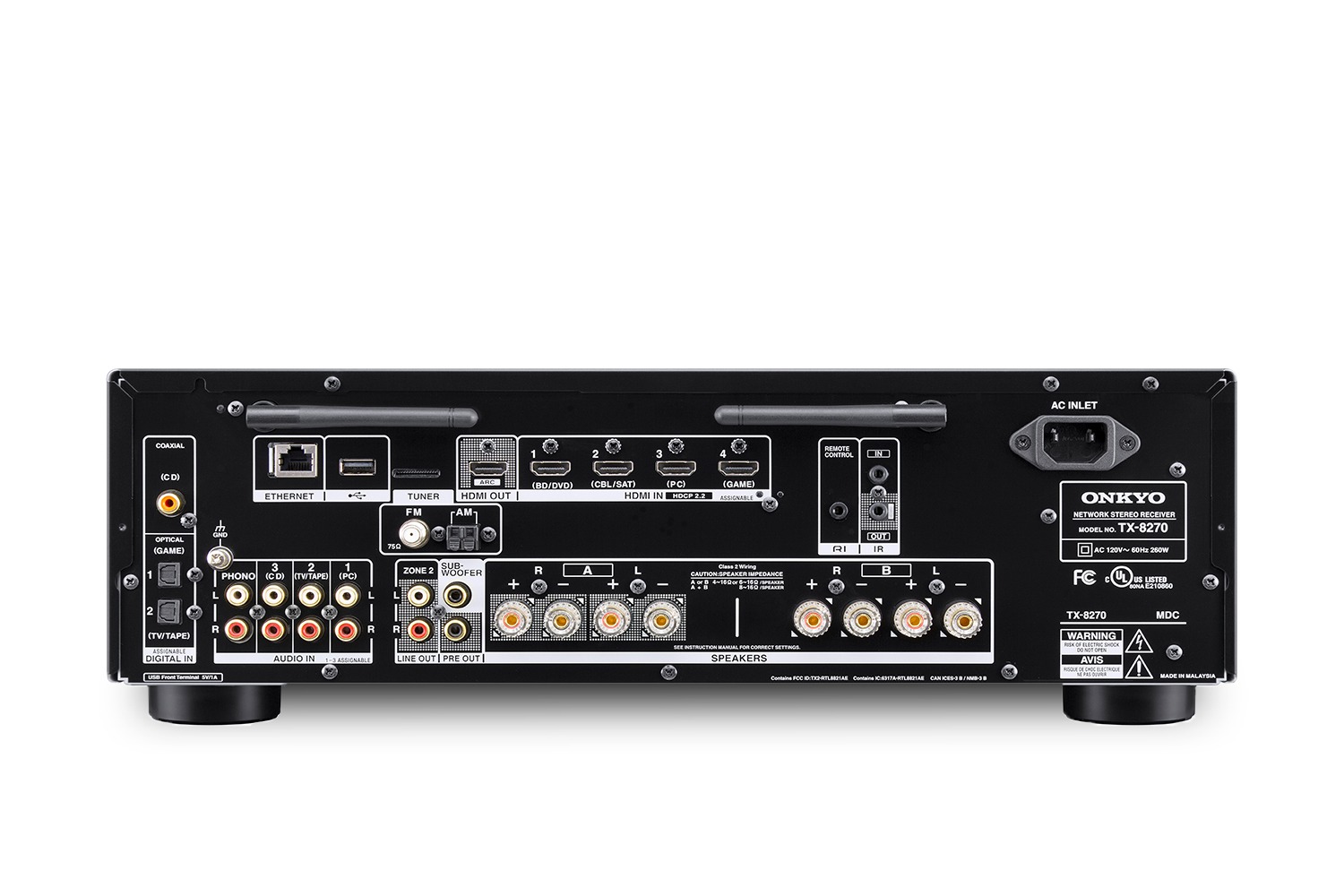

Enjoy support for HDR (High Dynamic Range) video including HDR10, HLG, Dolby Vision®, and BT.2020. The 4:4:4 color space is also supported. Six HDMI inputs, ARC-ready MAIN OUT, and SUB OUT pass 4K/60p and HDR video from player to compatible TV and projector and all terminals are HDCP 2.2 compliant.
SMOOTH AND EASY BLUETOOTH STREAMING
Whatever audio is playing on your phone, tablet, or PC app can be streamed to the receiver with Bluetooth wireless technology. Once the receiver has paired with and remembered your device, it will start playback automatically whenever it detects an incoming Bluetooth audio stream.
Onkyo Controller app for easy multi-room management
Onkyo Controller app collects streaming services and network-attached audio into one intuitive interface. Control playback, navigate internet services, and distribute audio all over the home with ease.
Power Watts/Ch (8 Ohms 20-20kHz, 2 Channels Driven, FTC)
100, 0.08% THD
Power Watts/Ch (6 Ohms 1kHz, 1 Channel Driven, FTC)
170, 0.10% THD
Dynamic Power
240 W (3 Ohms, Front) 210 W (4 Ohms, Front) 120 W (8 Ohms, Front)
THD + Noise
0.08 % (20hz-20kHz, Half power)
Frequency Response
10 Hz-100 kHz (+ 1 dB, -3 dB) (Direct Mode)
S/N Ratio
106 dB (IHF-A, Line In, Speaker Out) 80 dB ( IHF-A, Phono In, Speaker Out)
Phono Overload (1 kHz)
70 mV (MM, 1 kHz, 0.5%)
Power Supply
AC 120 V˜, 60 Hz
Standby Power Consumption
0.1 W
No-Sound Power Consumption
35 W
Network Standby Power Consumption
2.6 W
Dimensions (W x H x D)
17 1/8" x 5 7/8" x 12 15/16" (435 x 149 x 328 mm)
Weight
18.1 lbs. (8.2 kg)
