Description

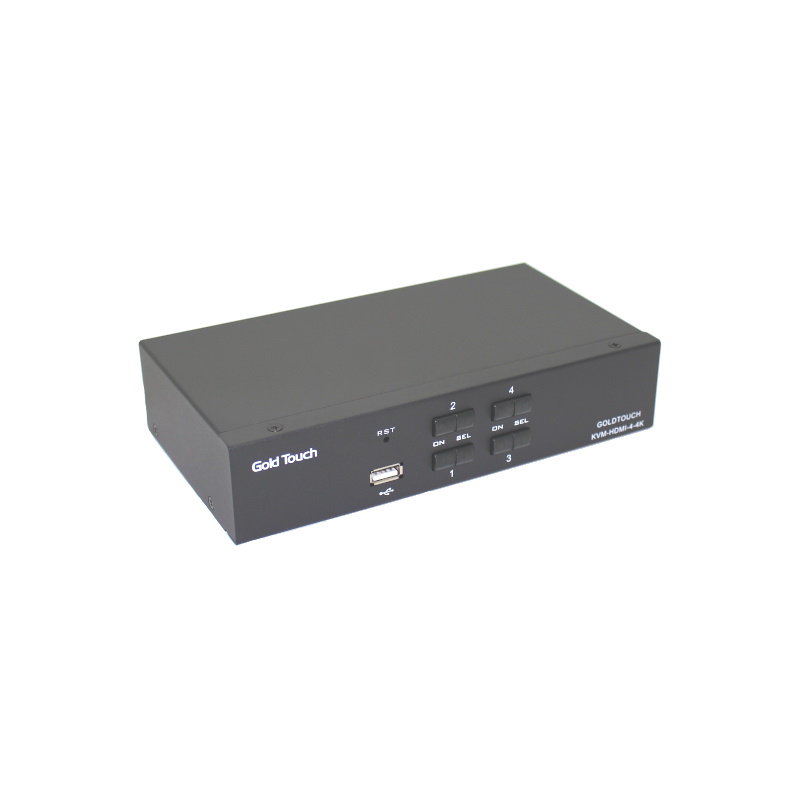

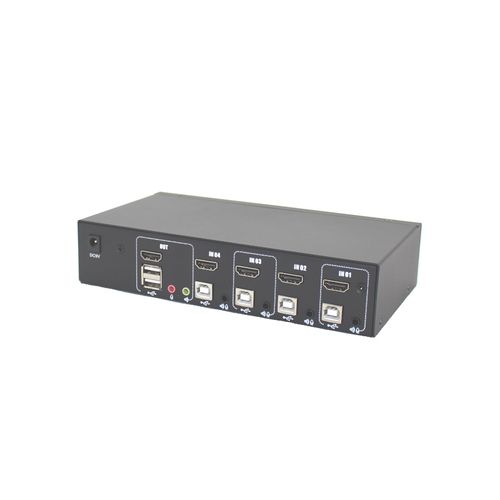

4K KVM HDMI 4Ports Awitch
Features:
4Port HDMI USB2.0 KVM Switch with audio, Support 4K Resolution
SingleUSB console control 4 HDMI interface computer and two additional USB device;
2ports USB hub 2.0 built in; fully compliant USB 2.0 specification;
HDMI video resolution in Max: 4K@30fp4K @30HZ (3840*2610@30HZ);
HDMI digital monitor support -fully compliant with HDMI; also HDCP compliant
Dolby True HD and DTS HD Master Audio support
Multiplatform support;
USB extension port in front of device, which isconvenience for keyboard, mouse, flash and printer peripheral devices connection;
Provide multi-types of hotkeys setting and choosingfunction, convenience for users to set hotkey freely;
Auto-scan functions;
Specification:
Function | KVM-HDMI-4-4K |
Computer Connection | 4 |
Port Selection | OSD Menu, Front panel switches, Hot Key |
Connector | Console Connector | Monitor | 1 x HDMA Type A Female Black |
Keyboard | 1 x USB Type A Female |
Mouse | 1 x USB Type A Female |
Audio | 1 x Speaker -3.5mm Socket Green 1 x MIC-3.5mm Socket Pink |
PC Connector | Monitor | 4 x HDMI Type A Female Black |
Mouse/Keyboard | 4 x USB Type B Female White |
Audio | 4 x 3.5mm Audio integration Socket Black |
Power Supply | 1 x DC Jack (Extermal PSU is opptional) |
Connection Port Selection | KVM Switch Reset | 4*KVM Operation Panel Function Keys |
LED Instruction | Online | 4 x Red |
Selected | 4 x Green |
Simulation Method | Keyboard/Mouse | USB |
Max Resolution Video | 4K @30HZ (3840*2610 @30HZ) |
Switch Hotkeys | CTL+CTL |
Operating Environment | Operating temperature | 0-50℃ |
Storage temperature | -20-60℃ |
Humidity | 0~80%RH No Condensation |
Physical Properties | Housing | metal |
Dimensions ( L x W x H ) | 202*110*44mm |
Weight(kgs) | 0.85 |
