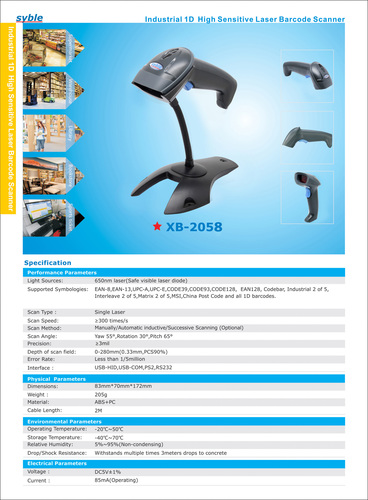

Model Number
XB-2058
Performance Parameters
Light Sources
650nm laser(Safe visible laser diode)
Supported Symbologies
EAN-8,EAN-13,UPC-A,UPC-E,CODE39,CODE93,CODE128, EAN128, Codebar, Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,China Post Code and all 1D barcodes ects
Scan Type
Single Laser
Scan Speed:
≥300 times/s
Scan Method
Manually/Automatic inductive/Successive Scanning (Optional)
Scan Angle
Yaw 55°,Rotation 30°,Pitch 65°
Precision
≥3mil
Depth of scan field
0-280mm(0.33mm,PCS90%)
Error Rate
Less than 1/5 million
Interface
USB-HID,USB-COM,PS2,RS232
Physical Parameters
Dimensions
83mm*70mm*172mm
Weight
205g
Material
ABS+PC
Cable Length
2M
Environmental Parameters
Operating Temperature
-20℃~50℃
Storage Temperature
-40℃~70℃
Relative Humidity
5%~95%（Non-condensing）
Drop/Shock Resistance:
Withstands multiple times 3meters drops to concrete
Electrical Parameters
Voltage
DC5V±1%
Current
85mA(Operating)
