Goosebumps guaranteed

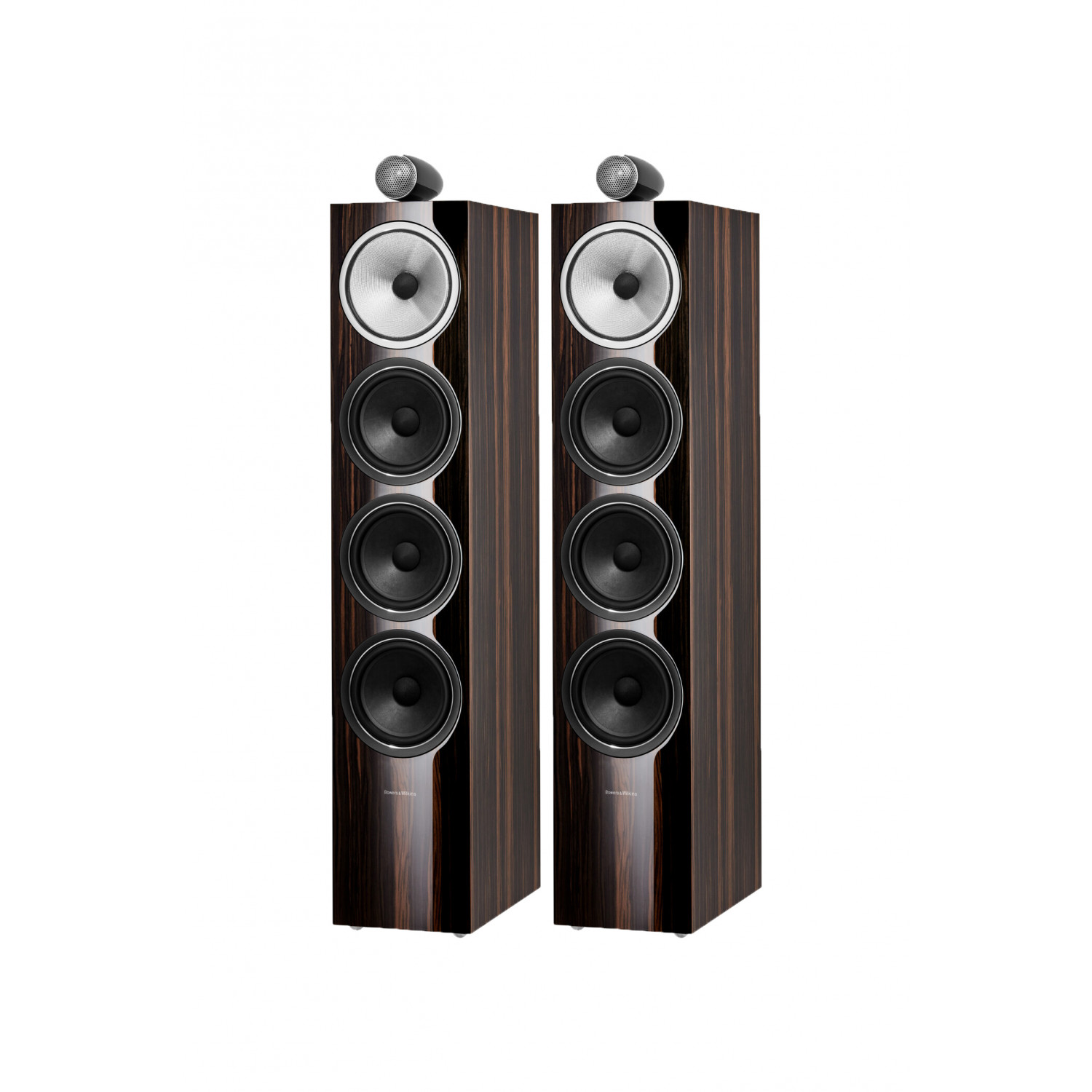

Music. Movies. Television. 702 S2 promises to transform your living room into a haven of high-quality sound, thanks to its studio-grade technologies trickled down from the 800 Series Diamond.
A house for high frequencies
Milled from a solid block of aluminum, the solid body tweeter housing design creates an acoustically optimized housing for the tweeter – one that’s exceptionally inert and resistant to resonances.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminum double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
A triumph of science
Developed using advanced computer modeling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Technical specifications
Model
702 S2
Description
3-way vented-box system
Features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range
-6dB at 28Hz and 33kHz
Frequency response
46Hz - 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
Nominal impedance
8Ω (minimum 3.1Ω)
Recommended amplifier power
30W - 300W into 8Ω on unclipped programme
Dimensions
Height: 994mm (39 in) cabinet only 1087mm (42.8 in) including tweeter and plinth
Width: 200mm (7.9 in) cabinet only 366mm (14.4 in) including plinth
Depth: 337mm (13.3 in) cabinet only 364mm (14.3 in) inc. grille and terminals 452mm including plinth
Net weight
29.5kg (65 lb)
Cabinet finishes
Gloss Black
Satin White
Rosenut
