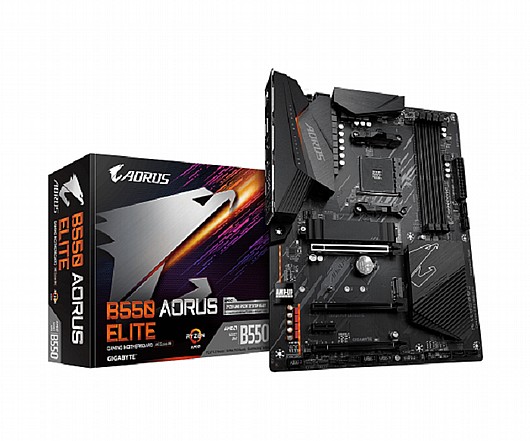

��� �� Gigabyte B550 AORUS ELITE

��� �� ������ AMD
����� AM4

<����� ����

<����� ����

  • ��� 1027943
  • �������� �����
    �������� ����� ����� ������ �����:
    • ����� PickUP ������� ������ ������ �� 15 �"�- 2-5 ��� ����� 0 �
    • ����� �� ���� 2-5 ��� ����� 40 �
    • ����� ����- ������ ���� 0 �
    �����
  • ����  GIGABYTE
  • ��� ����� ��5��� �����
  • ������ ���� ����
  • ���� �������  36

����   � 746 ILS 25/1/2027 In stock GIGABYTE 1027943 1027943

  • +
  • -
���� ���

���� �������

  • CPU
  • AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • (Please refer "CPU Support List" for more information.)
  • Chipset
  • AMD B550
  • Memory
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • 3rd Gen AMD Ryzen™ Processors:
  • Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
  • Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:
  • 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  • * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB
  • Audio
  • Realtek® ALC1200 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
  • LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • - 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
  • - New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
  • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
  • - Supporting PCIe 3.0 x2 mode
  • 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
  • - Supporting PCIe 3.0 x1 mode
  • 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
  • - Supporting PCIe 3.0 x1 mode
  • Storage Interface
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  • - New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • - Supporting SATA and PCIe 3.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  • - Support for RAID 0, RAID 1, and RAID 10
  • USB
  • CPU:
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 2 x USB 3.2 Gen 1 ports on the back panel
  • Chipset:
  • 2 x USB 3.2 Gen 1 ports on the back panel
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 2 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 3 x system fan headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x Clear CMOS jumper

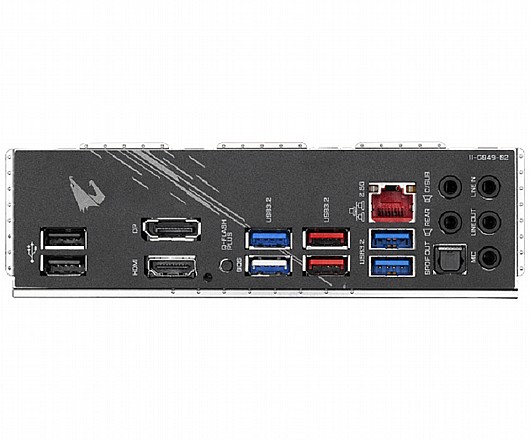

  • Back Panel Connectors
  • 1 x DisplayPort
  • 1 x HDMI port
  • 2 x USB 3.2 Gen 2 Type-A ports (red)
  • 4 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0/1.1 ports
  • 1 x Q-Flash Plus button
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
  • I/O Controller
  • iTE® I/O Controller Chip
  • H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
  • * Whether the fan speed control function is supported will depend on the fan you install.
  • BIOS
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
  • Support for APP Center
  • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  • @BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
  • Bundled Software
  • Norton® Internet Security (OEM version)
  • Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • Operating System
  • Support for Windows 10 64-bit
  • Form Factor
  • ATX Form Factor; 30.5cm x 24.4cm

������ �� ���� �� ������� ����...

��� ���

��� ����� �����
