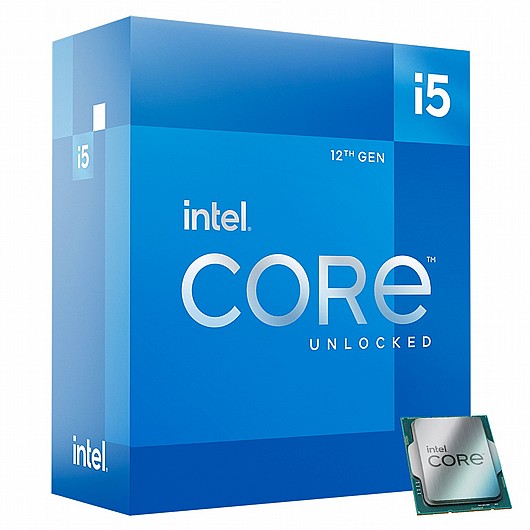

�� Intel Core i5-12500 TRAY ��

�� i5 �� 12 �� 1700

<��

<��

�� 1031777
��
�� :

�� PickUP �� 15 �"�- 2-5 �� 0 �
�� 2-5 �� 40 �
�� - �� 0 �

��
�� Intel
�� 5��
��
�� 36

�� 849 ILS 23/1/2027 In stock Intel 1031777 1031777

+
-

��

��

�� /� ��, ��, �-�� /� �� pccenter.co.il.

��

�� 847

(�� )

��
��

CPU Specifications

Total Cores6
# of Performance-cores6
# of Efficient-cores0
Total Threads12
Max Turbo Frequency4.60 GHz
Performance-core Max Turbo Frequency4.60 GHz
Performance-core Base Frequency3.00 GHz
Cache18 MB Intel® Smart Cache
Total L2 Cache7.5 MB
Processor Base Power65 W
Maximum Turbo Power117 W

Supplemental Information

Embedded Options AvailableYes
DatasheetView now

Memory Specifications

Max Memory Size (dependent on memory type)128 GB
Memory TypesUp to DDR5 4800 MT/s
Up to DDR4 3200 MT/s
Max # of Memory Channels2
Max Memory Bandwidth76.8 GB/s

Processor Graphics

Processor Graphics ‡Intel® UHD Graphics 770
Graphics Base Frequency300 MHz
Graphics Max Dynamic Frequency1.45 GHz
Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units32
Max Resolution (HDMI)‡4096 x 2160 @ 60Hz
Max Resolution (DP)‡7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz
DirectX* Support12
OpenGL* Support4.5
Multi-Format Codec Engines2
Intel® Quick Sync VideoYes
Intel® Clear Video HD TechnologyYes
# of Displays Supported ‡4
Device ID0x4690
OpenCL* Support2.1

Expansion Options

Direct Media Interface (DMI) Revision4.0
Max # of DMI Lanes8
Scalability1S Only
PCI Express Revision5.0 and 4.0
PCI Express Configurations ‡Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes20

Package Specifications

Sockets SupportedFCLGA1700, FCBGA1700
Max CPU Configuration1
Thermal Solution SpecificationPCG 2020C
TJUNCTION100°C
Package Size45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator3.0
Intel® Thread DirectorNo
Intel® Deep Learning Boost (Intel® DL Boost)Yes
Intel® Optane™ Memory Supported ‡Yes
Intel® Speed Shift TechnologyYes
Intel® Turbo Boost Max Technology 3.0 ‡No
Intel® Turbo Boost Technology ‡2.0
Intel® Hyper-Threading Technology ‡Yes
Intel® Virtualization Technology (VT-x) ‡Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
Intel® 64 ‡Yes
Instruction Set64-bit
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle StatesYes
Enhanced Intel SpeedStep® TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® Volume Management Device (VMD)Yes

Security & Reliability

Intel® AES New InstructionsYes
Secure KeyYes
Intel® OS GuardYes
Execute Disable Bit ‡Yes
Intel® Boot GuardYes
Mode-based Execute Control (MBEC)Yes
Intel® Control-Flow Enforcement TechnologyYes

�� ...
