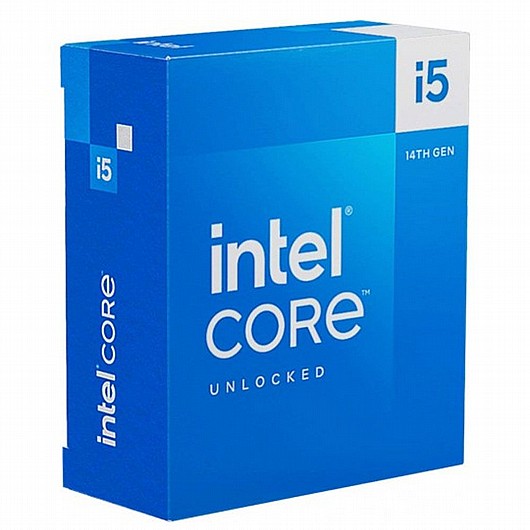

�� Intel Core i5-14600K TRAY

�� Intel Core i5-14600K TRAY
�� 1700

<��

<��

�� 1038097
��
�� :

�� PickUP �� 15 �"�- 2-5 �� 0 �
�� 2-5 �� 40 �
�� - �� 0 �

��
�� Intel
�� 5��
��
�� 36

�� 995 ILS 23/1/2027 In stock Intel 1038097 1038097

+
-

��

��

�� /� ��, ��, �-�� /� �� pccenter.co.il.

��

�� 993

(�� )

��
��

CPU Specifications

Total Cores14

# of Performance-cores6

# of Efficient-cores8

Total Threads20

Max Turbo Frequency5.3 GHz

Performance-core Max Turbo Frequency5.3 GHz

Efficient-core Max Turbo Frequency4 GHz

Performance-core Base Frequency3.5 GHz

Efficient-core Base Frequency2.6 GHz

Cache24 MB Intel® Smart Cache

Total L2 Cache20 MB

Processor Base Power125 W

Maximum Turbo Power181 W

Supplemental Information

Marketing StatusLaunched

Launch DateQ4'23

Embedded Options AvailableNo

Memory Specifications

Max Memory Size (dependent on memory type)192 GB

Memory TypesUp to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels2

Max Memory Bandwidth89.6 GB/s

ECC Memory Supported ‡Yes

GPU Specifications

Processor Graphics ‡Intel® UHD Graphics 770

Graphics Base Frequency300 MHz

Graphics Max Dynamic Frequency1.55 GHz

Graphics OutputeDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units32

Max Resolution (HDMI)‡4096 x 2160 @ 60Hz

Max Resolution (DP)‡7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡5120 x 3200 @ 120Hz

DirectX* Support12

OpenGL* Support4.5

OpenCL* Support3.0

Multi-Format Codec Engines2

Intel® Quick Sync VideoYes

Intel® Clear Video HD TechnologyYes

# of Displays Supported ‡4

Device ID0xA780

Expansion Options

Direct Media Interface (DMI) Revision4.0

Max # of DMI Lanes8

Scalability1S Only

PCI Express Revision5.0 and 4.0

PCI Express Configurations ‡Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes20

Package Specifications

Sockets SupportedFCLGA1700

Max CPU Configuration1

Thermal Solution SpecificationPCG 2020A

TJUNCTION100°C

Package Size45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator3.0

Intel® Thread DirectorYes

Intel® Deep Learning Boost (Intel® DL Boost) on CPUYes

Intel® Speed Shift TechnologyYes

Intel® Turbo Boost Technology ‡2.0

Intel® Hyper-Threading Technology ‡Yes

Intel® 64 ‡Yes

Instruction Set64-bit

Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle StatesYes

Enhanced Intel SpeedStep® TechnologyYes

Thermal Monitoring TechnologiesYes

Intel® Volume Management Device (VMD)Yes

Security & Reliability

Intel® Standard Manageability (ISM) ‡Yes

Intel® Control-Flow Enforcement TechnologyYes

Intel® AES New InstructionsYes

Secure KeyYes

Intel® OS GuardYes

Execute Disable Bit ‡Yes

Intel® Boot GuardYes

Mode-based Execute Control (MBEC)Yes

Intel® Virtualization Technology (VT-x) ‡Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes

Intel® VT-x with Extended Page Tables (EPT) ‡Yes

�� ...
