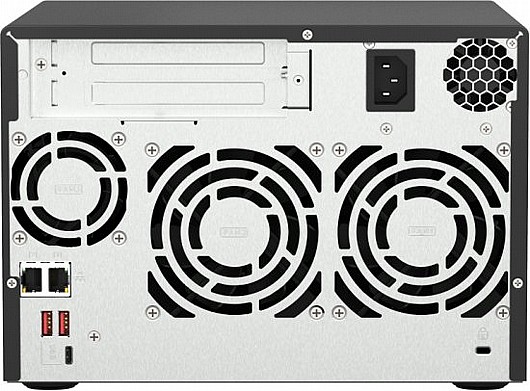

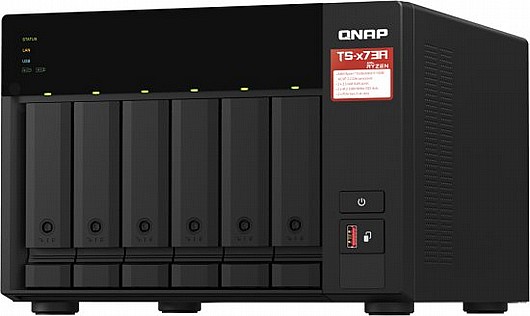

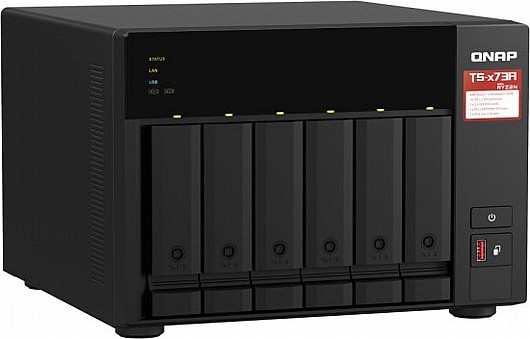

��� NAS� QNAP TS-673A-8G 6 bay

��� ����� QNAP NAS ����� 6 ������
������ ������ �� ��� ������ �����
������ ������ �����!!!

<����� ����

<����� ����

  • ��� 1036422
  • �������� �����
    �������� ����� ����� ������ �����:
    • ����� ����- ������ ���� 0 �
    • ����� �� ���� 2-5 ��� ����� 0 �
    �����
  • ����  QNAP
  • ��� ����� ��5��� �����
  • ������ ������
  • ���� �������  36

����   � 4,877 ILS 27/1/2027 In stock QNAP 1036422 1036422

  • +
  • -
���� ���

���� �������

�����
CPU
AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture
64-bit x86
Graphic Processors
Optional via a PCIe adapter
Floating Point Unit
✓
Encryption Engine
✓ (AES-NI)
Hardware-accelerated Transcoding
Optional via a PCIe adapter
System Memory
8 GB SODIMM DDR4 (1x 8 GB)
Maximum Memory
64 GB (2x 32 GB)
Memory Slot
2x SODIMM DDR4
Support ECC memory
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory
5GB (Dual boot OS protection)
Drive Bay
6x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
✓
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 Slot
2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
✓
GPU Pass-Through
✓
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)
Optional via a PCIe adapter
10 Gigabit Ethernet Port
Optional via a PCIe adapter
Wake on LAN (WOL)
✓
Jumbo Frame
✓
PCIe Slot
2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
Card dimensions for PCIe slot 1~Slot 2：200 x 111.15 x 18.76 mm / 7.87 x 4.38 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port
3 x Type-A USB 3.2 Gen 2 10Gbps
1 x Type-C USB 3.2 Gen 1 5Gbps
HDMI Output
Optional via a PCIe adapter
Form Factor
Tower
LED Indicators
Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2
Buttons
Power, Reset, USB Auto Copy
Dimensions (HxWxD)
188.2 × 264.3 × 280.8 mm
Weight (Net)
5.78 kg
Weight (Gross)
7.35 kg
Operating Temperature
0 - 40 °C (32°F - 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit
250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode
21.891 W
Power Consumption: Operating Mode, Typical
45.898 W
Tested with drives fully populated.
Fan
System fan: 2 x 92mm
CPU fan: 1 x 60mm
System Warning
Buzzer
Kensington Security Slot
✓
Max. Number of Concurrent Connections (CIFS) - with Max. Memory
2000
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
�����
Click Here for Software Specs
����� �����
TS-673A
Ethernet cable x1
Power cord x1
Flat head screw x18 (for 3.5" HDD)
Flat head screw x18 (for 2.5" HDD)
M.2 SSD Heatsink x2
Drive tray keys x2
Quick installation guide (QIG)

������ �� ���� �� ������� ����...

��� ���

��� ����� �����
