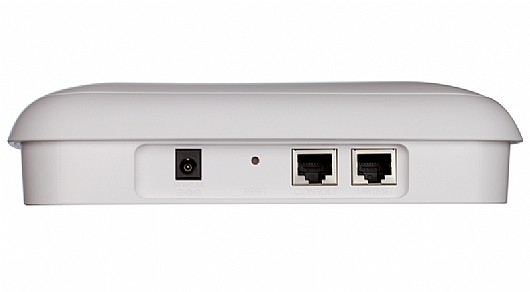

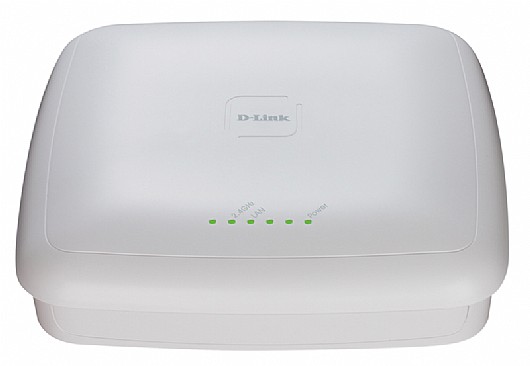

����� ���� ������� D-link DWL-3600AP

����� ���� ���������� �������, ���� 802.11n �� 300Mbps

<����� ����

<����� ����

  • ��� 108218
  • �������� �����
    �������� ����� ����� ������ �����:
    • ����� PickUP ������� ������ ������ �� 15 �"�- 2-5 ��� ����� 0 �
    • ����� �� ���� 2-5 ��� ����� 40 �
    • ����� ����- ������ ���� 0 �
    �����
  • ����  D-LINK
  • ��� ����� ��5��� �����
  • ������ ���� ����
  • ���� �������  36
���� ���� �1,650

����   � 1,014 ILS 27/1/2027 In stock D-LINK 108218 108218

  • +
  • -
���� ���

���� �������

DWL-3600AP - Universal External Access Point 802.11n Wi-Fi, designed for deployment in business class. Flexible in managing and supporting data transfer at high speeds, this Access Point provides easy integration into existing network infrastructure, which can be further expanded. The access point can be made in case a class Plenum (DWL-3600AP/A1A) or plain plastic case (DWL-3600AP/A1A/PC).

System
� Wireless Interface: 802.11b/g/n 2,4 GHz 2x2 MIMO
� Interface LAN: 10/10/100 Gigabit Ethernet
� Antenna: Internal antenna 4
� Antenna Gain: 4,7 dBi
� Supply: IEEE 802.3af Power Over Ethernet or external power adapter

Frequency
� 2.4 GHz - 2.497 GHz

Data transfer rate
� 802.11n:
  6.5 Mbit / s - 130 Mbit / s (20 MHz)
  6.5 MHz - 300 Mbit / s (40 MHz)
� 802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbit / s
� 802.11b: 11, 5.5, 2 and 1 Mbit / s

Transmitter output power
� 802.11b:
 21 dBm at 1, 2, 5.5, 11 Mbit / s
� 802.11g:
  21 dBm at 6 Mbit / s ~ 24 Mbit / s
  19 dBm at 36 dBm at Mbit/s18 48 Mbit / s
  17 dBm at 54 Mbit / s
� 802.11n (2,4 GGts/HT-20):
  20 dBm at MCS0 / 8
  20 dBm at MCS1 / 9
  20 dBm at MCS2/10
  20 dBm at MCS3/11
  19 dBm at MCS4/12
  18 dBm at MCS5/13
  17 dBm at MCS6/14
  16 dBm at MCS7/15
� 802.11n (2,4 GGts/HT-40)
  19 dBm at MCS0 / 8
  19 dBm at MCS1 / 9
  19 dBm at MCS2/10
  19 dBm at MCS3/11
  17 dBm at MCS4/12
  16 dBm at MCS5/13
  14 dBm at MCS6/14
  14 dBm at MCS7/15

Receiver Sensitivity
� 802.11b:
  -89 DBm at 2 Mbit / s
  -84 DBm at 11 Mbit / s
� 802.11g:
  -85 DBm at 6 Mbit / s
  -84 DBm at 9 Mbit / s
  -84 DBm at 12 Mbit / s
  -82 DBm at 18 Mbit / s
  -78 DBm at 24 Mbit / s
  -73 DBm at 36 Mbit / s
  -70 DBm at 48 Mbit / s
  -68 DBm at 54 Mbit / s
� 802.11n (2,4 GGts/HT-20):
  - 82dBm at MCS0 / 8
  - 79dBm at MCS1 / 9
  - 77dBm at MCS2/10
  - 74dBm at MCS3/11
  - 70dBm at MCS4/12
  - 66dBm at MCS5/13
  - 65dBm at MCS6/14
  - 64dBm at MCS7/15
� 802.11n (2,4 GGts/HT-40)
  -79 DBm at MCS0 / 8
  -76 DBm at MCS1 / 9
  -74 DBm at MCS2/10
  -71 DBm at MCS3/11
  -67 DBm at MCS4/12
  -63 DBm at MCS5/13
  -62 DBm at MCS6/14
  -61 DBm at MCS7/15

Security
� SSID: 16 SSID, Station Isolation
� Safety:
  + WEP
  + Dynamic WEP
  + WPA Personal / Enterprise
  + WPA2 Personal / Enterprise
� Detection and Prevention:
  + Classification of unauthorized access points and unauthorized
� Authentication:
  + Filtering by MAC-addresses
  + 802.1x

System control
� Web-User Interface: HTTP / HTTPS
� Command line: SNMP, SSH, Telnet


������ ������

Power
� Power adapter: 5V / 2,5 A
� Power over Ethernet: 48 VDC + / - 10%

Type of housing
� Plastic housing or housing class Plenum

Body size
� 203 x 203 x 48 mm

Weight
� Standard package: 550 g
� Housing class Plenum: 635 g

Operating temperature
� From 0 ˚ to 50 ˚ C

Operating humidity
� From 10% to 90% noncondensing

Security
� cUL, LVD (EN60950-1), UL2043 (only for the class �plenum�)

Certificates of EMI / EMC / RF
� FCC Class B, CE Class B, C-tick, IC, VCCI, NCC, TELEC, Wi-Fi �


������ �� ���� �� ������� ����...

��� ���

��� ����� �����
