����� ���� ������� D-link DWC-1000

��� ������ �� 2 ������ �'������ WAN � 4 ������ �'������ LAN

<����� ����

<����� ����

  • ��� 108219
  • �������� �����
    �������� ����� ����� ������ �����:
    • ����� �� ���� 2-5 ��� ����� 40 �
    • ����� ����- ������ ���� 0 �
    • ����� �� ���� 2-5 ��� ����� 0 �
    �����
  • ����  D-LINK
  • ��� ����� ��5��� �����
  • ������ ���� ����
  • ���� �������  36
���� ���� �3,650

����   � 2,919 ILS 23/1/2027 In stock D-LINK 108219 108219

  • +
  • -
���� ���

���� �������

Wireless Controller D-Link DWC-1000 provides centralized management of devices in a wireless LAN and is designed for network campuses, branch offices and small and medium business (SMB). With the ability to control from 6 to 24 wireless access points and up to 96 access points in the cluster controller, DWC-1000 is a full-featured and economical solution for small and medium businesses. Automatic detection of access points and centralized management allow users to purchase enterprise-class performance without the cost of large and complex configurations. Thanks to the reliable and versatile security DWC-1000 provides protection from potential attacks by unauthorized users and devices in a wireless network.

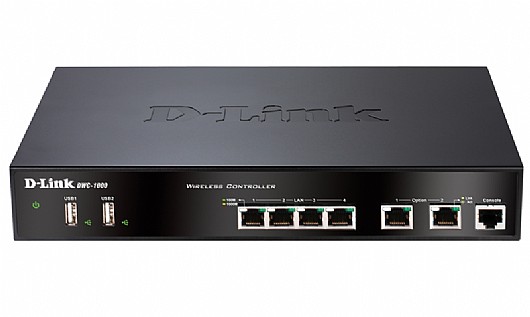

Interface
� Ethernet: 2-port 10/100/1000 Option *, 4-port 10/100/1000 LAN
� USB: 2 USB 2.0 ports
� The console port: RJ-45

Performance
� The maximum number of access points to the device (default / after the upgrade): 6/241
� The maximum number of access points in a cluster (default / after the upgrade): 24/961
� Number of concurrent users passing on an adaptive authentication portal (wired / wireless network): 124/400
� Dedicated tunnels VPN IPSec2: 70
� Dedicated tunnels VPN PPTP / L2TP2: 25
� Dedicated tunnels VPN SSL VPN2: 20

Office of the access points
� Compatible Managed AP: DWL-8600AP, DWL-6600AP, DWL-3600AP
� Control and detection of TH: Layer-2, Layer-3
� Monitoring the AP:
  - Managed AP
  - Unauthorized AP
  - TD is not authenticated
  - Autonomous APs
� Monitoring client
  - The authenticated client
  - Unauthorized client
  - The client is not authenticated
  - Client Ad-hoc
� Support for centralized management of security policy / RF

Roaming
� Fast roaming
� Roaming between controllers and access points connected to one controller
� Intra-and inter-subnet roaming

Security
� Wireless Network Security
  - WEP, Dynamic WEP
  - WPA Personal / Enterprise
  - WPA2 Personal / Enterprise
� Intrusion Detection System in Wireless Network (WIDS)
  - Classification of rogue access points and the actual
  - Rogue AP Mitigation
� Secure LAN
  - Access control 802.1x port-based and Guest VLAN
� Authentication
  - Adaptive Portal
  - Authentication by MAC-addresses

VLAN
� Group VLAN: Up to 255 entries
� 802.1q VLAN Tagging
� VLAN-based subnets
� VLAN-based port

Firewall
� Policies
  - Support for 100 rules for each function
  - Up to 600 firewall rules
� Dynamic mashrut: RIPv1, RIPv2
� Dynamic DNS
� NAT, PAT
� Web-content filtering
  - Static URL
  - Keywords

Installing
� Redundant route
� Load Balancing

Virtual Private Network (VPN)
� The types of encryption: DES, NULL
� IPSec NAT Traversal
� Detection of inactive nodes
� IP Encapsulating Security Payload (ESP)
� IP Authentication Header (AH)
� VPN Tunnel Keep Alive
� Hub and Spoke

SSL Virtual Private Network (SSL VPN) 2
� The types of encryption: DES
� Message integrity: MD5, SHA1

Management
� Web-interface: HTTP
� Command Line Interface
� SNMP: v1, v2c, v3


������ ������

Power
� Internal power supply: DC 12V / 2,5 A

Max. power consumption
� 19.3 Watts

Dimensions
� 180 x 280 x 44 mm

Operating temperature
� From 0 to 40 �

Storage temperature
� From -20 To 70 �

Operating humidity
� 5 to 95%, without condensation

EMI
� FCC Class B, CE Class B, VCCI, C-tick, IC

Security
� cUL, LVD (EN60950-1)


������ �� ���� �� ������� ����...

��� ���

��� ����� �����
