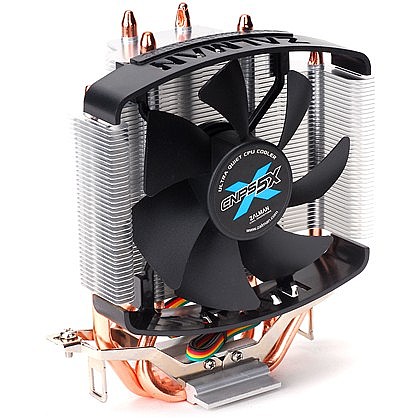

�� ZALMAN CNPS5X

�� . �� INTEL ,AMD
�� 1151 ��

<��

�� 1012013
��
�� :

�� PickUP �� 15 �"�- 2-5 �� 0 �
�� 2-5 �� 40 �
�� - �� 0 �

��
�� Zalman
�� 5��
�� 36

~~�� 290~~

�� 179 ILS 24/1/2027 In stock Zalman 1012013 1012013

��

�� /� ��, ��, �-�� /� �� pccenter.co.il.

��

�� 177

(�� )

��
��

Socket

CPU

CPU Compatibility

Intel	1155/1156	Core i7	Supports all speeds
		Core i5
		Core i3
	1150	Core i7	Supports all speeds
		Core i5
	775	Core 2 Quad	Supports all speeds
		Core 2 Duo
		Core 2 Extreme
		Pentium Dual Core
		Pentium D
		Pentium 4
		Celeron D
AMD	FM1	Llano	Supports all speeds
	FM2	Trinity	Supports all speeds
	AM3+	Vishera	Supports all speeds
		Zambezi	Supports all speeds
	AM3	Phenom II	Supports all speeds
		Athlon II
	AM2+	Phenom II	Supports all speeds
		Phenom
		Athlon FX
		Athlon X2
		Athlon
		Sempron
	AM2	Athlon FX	Supports all speeds
		Athlon X2
		Athlon
		Sempron
	940	Dual-Core Opteron	Supports all speeds
		Opteron
		Athlon FX
	939	Dual-Core Opteron	Supports all speeds
		Opteron
		Athlon FX
		Athlon X2
		Athlon
	754	Athlon	Supports all speeds
		Sempron

The cooler`s installation requires an unobstructed space of 127mm(L), 64mm(W), and 134mm(H), with the CPU as a central reference point. Please check if components such as ODD, VGA and PSU protrude into the required space.

Dimensions	127(L) x 64(W) x 134(H)mm
Weight	320g
Materials	Pure Copper, Aluminum
Fan RPM	1,350 ~ 2,700rpm ± 10%
Noise	20 ~ 32dBA ± 15%
Fan Bearing	FSB(Fluid Shield Bearing)
Input Voltage	12V
Function	PWM Control, Auto Restart

Color	Gray
Capacity	1g
Temperature Stability	-40°C ~ +150°C (-40℉ ~ +302℉)

Powerful Cooling Performance

Three heatpipes and aluminum fins are designed for maximum cooling while cooler setup quickly expels hot air out of the case.

Ultra Quiet 92mm Fluid Shield Bearing Fan

An ultra quiet 92mm fan with FSB bearing is incorporated for minimized noise and excellent cooling.

PWM Fan Control

The PWM (Pulse Width Modulation) Fan automatically adjusts fan speed (RPM) according to the CPU`s temperature.

Easy Installation

The cooler is designed with tool-less installation clip, making installation convenient.

High Performance Super Thermal Grease
ZM-STG2M

The included all new high performance thermal grease
ZM-STG2M maximizes heat transfer from the CPU to the base of CNPS5X for intensified cooling performance.

Versatile Compatibility

CNPS5X accommodates a broad range of sockets.
Intel LGA 1150 / 1155 / 1156 / 775
AMD FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2
