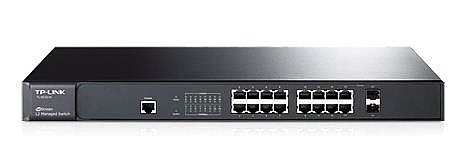

רכזת TP-LINK TL-SG3216

סוויץ' מנוהל מבית TP-LINK דגם TL-SG3216. תומך במגוון רחב של סטנדרטים ופרוטוקולים, בעל 16 פורטים מסוג RJ45 10/100/1000Mbps, כולל מגוון פיצ'רים כגון שליטה על תעבורת המידע (QoS), בקרת גישה ו-VLAN, ממשק ניהול נוח המאפשר שליטה על מלאה על תכונות הסוויץ', יכולות אבטחה גבוהות.
  • מקט 104544
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • משלוח PickUP לנקודות נבחרות באזורך עד 15 ק"ג- 2-5 ימי עסקים 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 40 ₪
    • איסוף עצמי- בתיאום מראש 0 ₪
    סגירה
  • יצרן  TP LINK
  • זמן אספקה עד5ימי עסקים
  • מספר תשלומים  36
רגיל רגיל 1,450

מבצע   1,050 ILS 28/1/2027 In stock TP LINK TL-SG3216 TL-SG3216

  • +
  • -

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,
IEEE 802.3ad,IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,
IEEE 802.1w,IEEE 802.1q,IEEE 802.1x,IEEE 802.1p

Interface

16 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Combo 100/1000Mbps SFP Slots*
1 Console Port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
100BASE-FX:MMF,SMF
1000BASE-X: MMF, SMF

Dimensions ( W x D x H )

17.3*8.7*1.7 in.(440*220*44 mm)

Power Supply

100~240VAC, 50/60Hz



PERFORMANCE

Bandwidth/Backplane

32Gbps

MAC Address Table

8k

Packet Buffer Memory

512KB

Packet Forwarding Rate

23.8Mpps

Jumbo Frame

10240 Bytes



SOFTWARE FEATURES

Quality of Service

Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN

L2 Features

IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups,
containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control

VLAN

Support IEEE802.1Q with 4K VLAN groups and 4K VIDs
Port/ MAC/Protocol-based VLAN
GARP/GVRP

Access Control List

L2L4 package filtering based on source and destination
MAC address, IP address, TCP/UDP ports, 802.1p,
DSCP, protocol and VLAN ID
Time Range Based

Security

IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control

Management

Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS



OTHERS

Certification

CE, FCC

Package Contents

Switch;
Power Cord;
Quick Installation Guide;
Resource CD;
Rackmount Kit;
Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0~40 (32~104);
Storage Temperature: -40
~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
