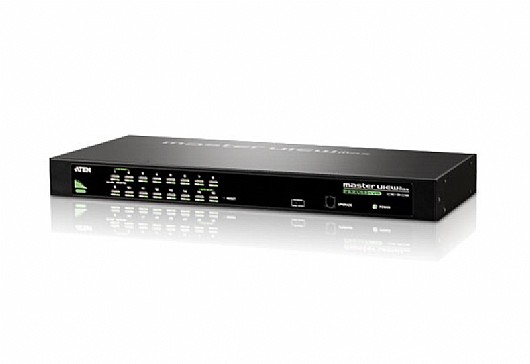

ATEN CS1316 16 PORT KVM USB

kvm איכותי מבית ATEN בחיבור USB
לא כולל כבלים
  • מקט 10390
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • משלוח PickUP לנקודות נבחרות באזורך עד 15 ק"ג- 2-5 ימי עסקים 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 40 ₪
    • איסוף עצמי- בתיאום מראש 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 0 ₪
    סגירה
  • יצרן  ATEN
  • זמן אספקה עד5ימי עסקים
  • אחריות שנה
  • מספר תשלומים  36
רגיל רגיל 2,659

מבצע   1,721 ILS 8/2/2027 In stock ATEN 10390 10390

  • +
  • -


Features








One USB-PS/2 console controls 16 computers



Cascade up to 2 levels* - control up to 256 computers



Dual Interface - supports computers with PS/2 or USB keyboards and mice



Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun



Supports multimedia USB keyboards for PC, Mac and Sun



Auto PS/2 and USB interface detection



USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere



Superior video quality - up to 2048 x 1536; DDC2B



Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu



Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each



Auto Scan feature for monitoring user-selected computers



Hot pluggable - add or remove computers without having to power down the switch



Buzzer on/off via hotkey and OSD



Firmware upgradeable



No software installation required



Designed for desktop or rack mount (19" system rack, 1U)

*Cascade function only works with USB KVM cable set connections.









Package Content








1x CS1316 KVM Switch with Rack Mount Kit



1x Console cable



1x Firmware Upgrade cable



1x Grounding wire



1x Foot Pad set (4 pads)



1x Power Adapter (AC Models)



1x User Manual



1x Quick Start Guide









Diagram














Specification







Computer Connections

Direct

16

Max.

256 (via Cascade)

Port Selection

OSD, Hotkeys, Pushbuttons

Connectors

Console Port

Keyboard

1 x SPHD-18 Male (Yellow)

Video

Mouse

KVM Ports

Keyboard

16 x SPHD-15 Female (Yellow)

Video

Mouse

FW Upgrade

1 x RJ-11 Female (Black)

Power

1 x DC Jack

Switches

Port

16 x Pushbutton

FW Upgrade

1 x Slide

LEDs

On Line

16 (Orange)

Selected

16 (Green)

Power

1 (Dark Green)

Emulation

Keyboard/Mouse

PS/2, USB

Video

2048 x 1536; DDC2B

Scan Interval

1-255 Seconds

Power Consumption

DC 5.3 V; 6.6 W

Environment

Operating Temp.

0-50˚C

Storage Temp.

-20-60˚C

Humidity

0-80% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

2.10 kg

Dimensions
(L x W x H)

43.30 x 16.00 x 4.40 cm









* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
