����� ���� CUDY 4G LT500 Outdoor

����� ���� CUDY 4G LT500 Outdoor
��� ����� ������+���� ������, ����� ���� �����, ��� ����, VPN ,SIM Slot, 4G/LTE

<����� ����

<����� ����

  • ��� 1041750
  • �������� �����
    �������� ����� ����� ������ �����:
    • ����� PickUP ������� ������ ������ �� 15 �"�- 2-5 ��� ����� 0 �
    • ����� �� ���� 2-5 ��� ����� 40 �
    • ����� ����- ������ ���� 0 �
    �����
  • ����  CUDY
  • ��� ����� ��5��� �����
  • ������ ������ ����� ����
  • ���� �������  36

����   � 445 ILS 23/1/2027 In stock CUDY

  • +
  • -
���� ���

���� �������

Model Version LT500 Outdoor 1.0
CPU Chipset MT7628
CPU Details 580 MHZ Single-Core, MIPS24KEC
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR2
Cellular Cellular Standards 4G Cat. 4
Cellular Antennas 2× Detachable
Detachable Cellular Antennas Connector SMA Female
SIM Options 1× Nano SIM Slot
Available Versions EU, US, LA
EU Version Cellular Suitable Region Europe, Middle East, Africa
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
US Version Cellular Suitable Region United States, Canada
Max DL Speed 150 Mbps
Max UL Speed 50 Mbps
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B2/4/5/12/13/14/66/71
WCDMA: B2/4/5
LA Version Cellular Suitable Region Latin America, Australia, New Zealand
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
CN Cellular Bands LTE-FDD: B1/2/3/4/5/7/8/28/66
LTE-TDD: B40
WCDMA: B1/2/4/5/8
GSM: B2/3/5/8
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Internal
Beamforming True
Range Performance Max: 170 m (558 ft)
Park: 150 m (492 ft)
Street: 50 m (164 ft)
Woods: 30 m (98 ft)
Interfaces Physical Buttons Reset Button
10/100 Mbps RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED
  • System
  • Internet
  • LAN
  • Wi-Fi
  • Cellular Signal Strength
Power Input PoE via Ethernet Port
Power Power Methods Passive PoE
Passive PoE 24V
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 24V 0.5A DC
Max Power Consumption (W) 10W
Idle Power Consumption (W) 5 W
Reliability Lightning/Surge Protection DM 2kV, CM 4kV
ESD Contact Protection 4kV
ESD Air Protection 8kV
Environment Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications FCC, CE
Mechanical Dimension Device Body:
240×100×53.7 mm
9.45×3.94×2.11 inches
Each Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches
Product Weight 420 g (14.82 oz.)
Installation
  • Wall-mount
  • Pole-mount
Package Content
  • LT500 Outdoor
  • Detachable Antennas
  • PoE Adapter
  • Power Cord
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • EU: 785 g (27.69 oz.)
  • US: 782 g (27.58 oz.)
Retail Package Dimension 324×107×86 mm
12.76×4.21×3.39 inches
Units per Carton 20
Carton Net Weight
  • EU: 15.7 kg (34.61 lbs)
  • US: 15.6 kg (34.39 lbs)
Carton Gross Weight
  • EU: 16.6 kg (36.6 lbs)
  • US: 16.5 kg (36.38 lbs)
Carton Dimension 46×33.7×45 cm
18.11×13.27×17.72 inches


��� ������ + ���� ������ LTE/4G - ����� ���� �����, ��� ����, IP65 Waterproof and Dustproof, VPN

4G LTE Outdoor WiFi Router, Model: LT500-Outdoor


https://www.cudytech.com/productinfo/1223080.html


● 150/50Mbps 4G LTE CAT 4
● 2.4GHz, 5 GHz

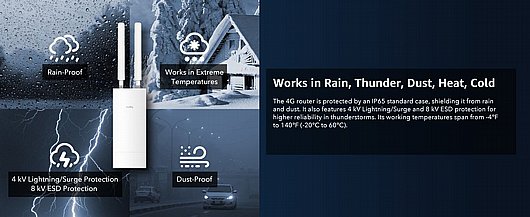

● IP65 Waterproof and Dustproof
● High gain antennas expand coverage
● VPN client builds security connections
● Flexible WAN/LAN port for dual connectivity
● Compatible with 15+ DDNS providers


����� �-VPN �� ������ PPTP, L2TP, WireGuard �-OpenVPN ������, ���� ��� ���� ����� ����� ����� ���� VPN ��� ������ �� �� ������� �������� �������� ���,
����� ���� ������ ��� ��-�����.

��� �-WAN ���� �� ����� �-LAN/WAN �-WAN ���� ��� Ethernet �� ������� ������ �-LAN/WAN, ��� ����� �-LAN/WAN ���� ����� ������ �� ��������,
���� ���� �-4G ���� ������. �� ����� �������� WAN/LAN ����, ��� ����� �������� ������ 4G

��� �� ��� �-4G LTE ��� ��� ���� �����:

��� �� ���� 4G LTE ����� �-AC1200 Dual-band WiFi �����, �� �� ���� ���� ����� ��� ������ ����� ����� SIM ������� �� ����.
������ �-Wi-Fi ���� ����� ���� ����� �� ��� �� ����.
������� ����� ������ ������� ���� �� �����. ���� ������� ���� �����. ���� �� ����� ����� ������� �� ����� �������� ����� ��� ����,
�� ����� �� ���� ������� ��� ���� ������.
���� ����� �� ����� ����� ��� ������ ����� SIM ����� �� �� ������ �-Wi-Fi ��� ��������, ��� ���� ���� ������ ���� �������� ������ ���� ����,
���� ����� ����� ���, ������ �������, ���� ���������.

������ �� ���� �� ������� ����...

��� ���

��� ����� �����
