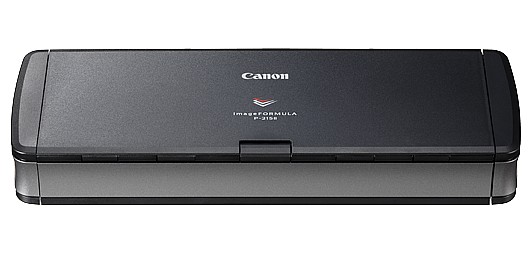

סורק Canon imageFORMULA P-215II קנון

Type

USB Powered Sheetfed Scanner

Scanning sensor unit

CMOS CIS 1 Line Sensor

Optical resolution

600dpi

Light source

RGB LED

Scanning side

Front / Back / Duplex

Interface

Hi speed USB 2.0 & USB 3.0

Dimensions (WxDxH)

Tray Closed :285 (W) x 95 (D) x 40 (H)mm

Tray Opened: 285 (W) x 257 (D) x 174 (H)mm

Weight

Approx. 1.0kg

Power requirements

USB 2.0 bus power: 0.5A (1.0A in combination with power supply USB cable)

USB 3.0 bus power: 0.9A

Optional AC Adaptor DC6V. 0.8A

Power consumption

USB cable only: 2.5W (USB 2.0), 4.5W (USB 3.0)

USB cable and power supply USB cable: 5.0W (USB 2.0), 7.0W (USB 3.0)

Sleep mode: 1.5W, Power OFF: 0.1W

Operating environment

10 – 32.5ºC (50 – 90.5ºF), Humidity: 25 – 80% RH

Environmental compliance

RoHS and ENERGY STAR

Black and White

With USB 3.0: 15ppm / 30ipm, with USB 2.0: 12ppm / 14ipm

Colour

With USB 3.0: 10ppm / 20ipm, with USB 2.0: 10ppm / 10ipm

Output resolution

150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi

Colour mode

Black & White, Error Diffusion, Advanced Text Enhancement II, 8-Bit Greyscale: (256-Level), 24-Bit Colour, Auto Colour Detection

Suggested Daily Duty Cycle

Approx 500 scans / day

Width

50.8 - 216mm

Length

70 - 356mm

Thickness

52 - 128g/m² (0.06 - 0.15mm)

Long document mode

Up to 1,000mm

Card scanning

54 x 86 x 1.4mm (Embossed card scanning is supported)

Paper separation

Separation Pad Method

Feeder capacity

20 sheets (64g/m²)

Others

Automatic Page Size Detection, Deskew, 3- Dimensional Colour Correction, Colour Dropout (RGB), Auto Colour Detection, Shading Correction, Text Enhancement, MultiStream, Preset Gamma Curve, Scan Panel, Prescan, Image Rotation, Skip Blank Page, Select Scanning Document Side, Scan Area Setting, Text Orientation, Continuous Scanning, Edge Enhancement, Moire Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Colour Drift, Background Smoothing, Shadow Cropping (on/off switchable), Trimming, Corrections suitable for photographs, Auto Resolution Setting

Windows

ISIS /TWAIN Driver (Windows XP Pro / XP Home / VISTA / 7 / 8 / 10)
CaptureOnTouch
CaptureOnTouch Lite
Cardiris

Mac

TWAIN Driver
CaptureOnTouch
CaptureOnTouch Lite

-

Separation Pad, Feed Roller

-

Silex Scan-and-Print Server (convert USB to network interface)
Canon Wi-Fi Unit WU10
