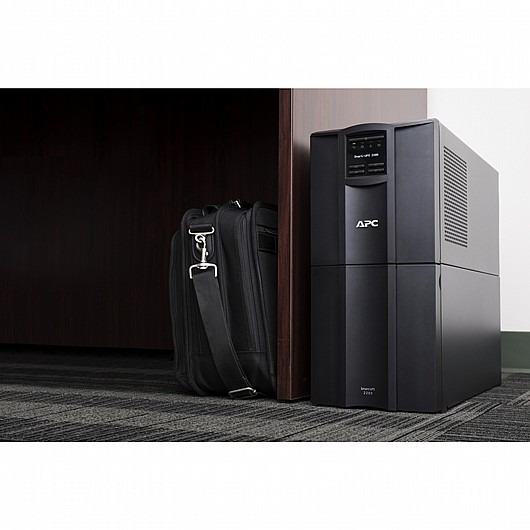

מחיר ₪ 5,230 ILS 5/2/2027 In stock https://www.pccenter.co.il/product/אל-פסק-apc-smt2200ic APC 1034434 1034434
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
|---|---|
| Lead time | Usually in Stock |
Run time for load
WMin-max: 198-1980 W
|
8min 42s
|
|---|---|
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| rated power in W | 1980 W |
| rated power in VA | 2200 VA |
| Input Connection Type | IEC 320 C20 Schuko CEE 7 / EU1-16P BS1363A British |
| nb of power socket outlets | 8 IEC 320 C13 2 IEC Jumpers 1 IEC 320 C19 |
| number of rack unit | 0U |
| number of cables | 1 |
| battery type | Lead-acid battery |
| provided equipment | USB cable |
| Number of power module filled slots | 0 |
|---|---|
| Number of power module free slots | 0 |
| product web sub-family | Cloud-enabled monitoring |
| redundant | No |
| colour | Black |
|---|---|
| height | 43.5 cm |
| width | 19.7 cm |
| depth | 54.4 cm |
| net weight | 50.2 kg |
| mounting location | Front |
| mounting preference | No preference |
| mounting mode | Not rack-mountable |
| two post mountable | 0 |
| USB compatible | Yes |
| input voltage limits | 151...302 V adjustable 160...286 V |
|---|---|
| network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| harmonic distortion | Less than 5 % |
|---|---|
| Maximum configurable power in VA | 2200 VA |
| Maximum configurable power in W | 1980 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| product certifications | CE EAC RCM VDE |
|---|
| acoustic level | 45 dBA |
|---|---|
| heat dissipation | 275 Btu/h |
| operating altitude | 0...10000 ft |
| ambient air temperature for operation | 0…40 °C |
| ambient air temperature for storage | -15…45 °C |
| storage altitude | 0.00…15240.00 m |
| relative humidity | 0…95 % |
| storage Relative Humidity | 0…95 % |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| extended runtime | 0 |
| number of battery filled slots | 0 |
| number of battery free slots | 0 |
| Battery recharge time | 3 h |
| number of battery replacement quantity | 1 |
| battery life | 3…5 year(s) |
| Battery power in VAH | 783 VAh runtime |
| battery charger power | 260 W rated |
| alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
|---|---|
| control panel | Multifunction LCD status and control console |
| Emergency power off | Yes |
| free slots | 1 |
| Surge energy rate | 365 J |
|---|---|
| noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Package 1 Weight | 61.9 kg |
|---|---|
| Package 1 Height | 69.9 cm |
| Package 1 width | 38.1 cm |
| Package 1 Length | 76.2 cm |
| Number of Units in Package 3 | 9 |
| Warranty | 3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available |
|---|
