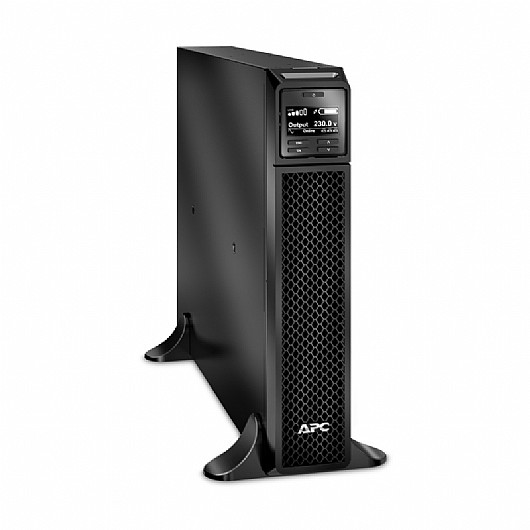

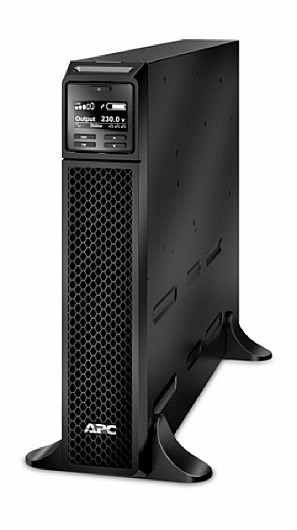

אל פסק APC Smart-UPS SRT3000XLI

Output

• Output power capacity
  2.7 KWatts / 3.0 kVA
• Max Configurable Power (Watts)
  2.7 KWatts / 3.0 kVA
• Nominal Output Voltage
  230V
• Output Voltage Note
  Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion
  Less than 2%
• Output Frequency (sync to mains)
  50/60Hz +/- 3 Hz
• Other Output Voltages
  220, 240
• Load Crest Factor
  3 : 1
• Topology
  Double Conversion Online
• Waveform type
  Sine wave
• Output Connections
  (8) IEC 320 C13 (Battery Backup)

  (2) IEC 320 C19 (Battery Backup)
• Bypass
  Internal Bypass (Automatic and Manual)

Input

• Nominal Input Voltage
  230V
• Input frequency
  40 - 70 Hz (auto sensing)
• Input Connections
  British BS1363A, IEC-320 C20, Schuko CEE 7/EU1-16P
• Cord Length
  2.44 meters
• Input voltage range for main operations
  160 - 275 V
• Input voltage adjustable range for mains operation
  100 - 275 (half load) V
• Number of Power Cords
  3
• Other Input Voltages
  220, 240

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  3 hour(s)
• Replacement Battery
  APCRBC152
• RBC Quantity
  1
• Extendable Run Time
  1
• Battery Volt-Amp-Hour Capacity
  505
• Extended Run Options
  APC-Smart-UPS-SRT-3000VA-230V
• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph

Communications & Management

• Interface Port(s)
  RJ-45 Serial , Smart-Slot , USB
• Control panel
  Multi-function LCD status and control console
• Audible Alarm
  Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)
  Yes
• Available SmartSlot™ Interface Quantity
  1

Surge Protection and Filtering

• Surge energy rating
  340 Joules
• Filtering
  --

Physical

• Maximum Height
  432 mm , 43.2 cm
• Maximum Width
  85 mm , 8.5 cm
• Maximum Depth
  635 mm , 63.5 cm
• Net Weight
  31.3 kg
• Shipping weight
  36.74 kg
• Shipping Height
  246 mm , 24.6 cm
• Shipping Width
  599 mm , 59.9 cm
• Shipping Depth
  871 mm , 87.1 cm
• Color
  Black
• Units per Pallet
  6.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95% no %
• Operating Elevation
  0-3000 meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95% no %
• Storage Elevation
  0-15000 meters
• Audible noise at 1 meter from surface of unit
  55.0 dBA
• Online thermal dissipation
  703.0 BTU/hr
• Protection Class
  IP 20
