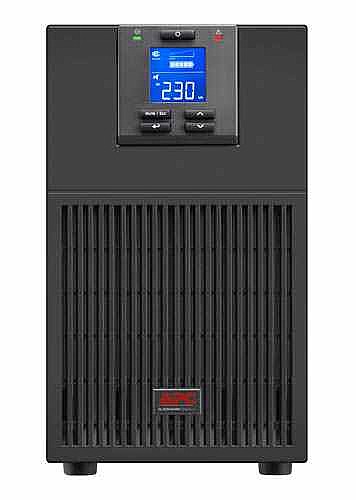

אל פסק APC Smart-UPS SRV 3000VA 230V SRV3KI

Output

• Output power capacity
  2.4 KWatts / 3.0 kVA
• Max Configurable Power (Watts)
  2.4 KWatts / 3.0 kVA
• Nominal Output Voltage
  230V
• Output Frequency (sync to mains)
  50/60Hz +/- 3 Hz
• Other Output Voltages
  220, 240
• Load Crest Factor
  3 : 1
• Topology
  Double Conversion Online
• Waveform type
  Sine wave
• Output Connections
  (6) IEC 320 C13 (Battery Backup)
  (1) IEC 320 C19 (Battery Backup)

Input

• Nominal Input Voltage
  230V
• Input frequency
  40 - 70 Hz
• Input Connections
  IEC-320 C14
• Input voltage range for main operations
  160 - 280V
• Number of Power Cords
  1
• Other Input Voltages
  220, 240

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  4hour(s)

Communications & Management

• Control panel
  Multi-function LCD status and control console
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating
  600Joules

Physical

• Maximum Height
  336mm , 33.6CM
• Maximum Width
  190mm , 19.0CM
• Maximum Depth
  425mm , 42.5CM
• Net Weight
  26.8KG
• Shipping weight
  29.0KG
• Shipping Height
  465mm , 46.5CM
• Shipping Width
  325mm , 32.5CM
• Shipping Depth
  565mm , 56.5CM

Environmental

• Operating Temperature
  0 - 40 °C
• Operating Relative Humidity
  0 - 95% non-condensing %
• Operating Elevation
  0-3000meters
• Storage Temperature
  -20 - 50 °C
• Storage Relative Humidity
  0 - 95% non-condensing %
• Storage Elevation
  0-14763.6meters

Conformance

• Approvals
  CE, IEC 62040-1-1, IEC 62040-1-2
• Standard warranty
  2 years repair or replace
