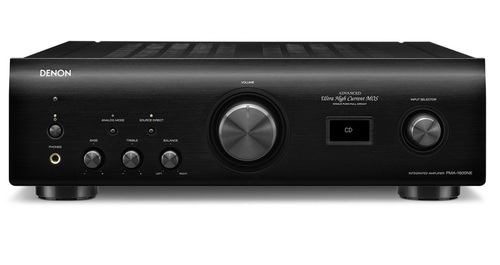

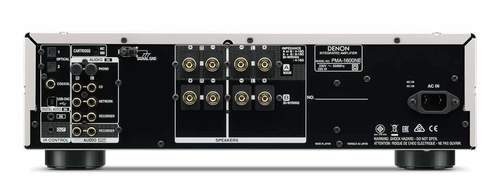

מגבר סטריאו DENON
המספק 70W ב 8 OHM
Power amplifier section
Rated Output Power:
2-channel driving (CD → SP OUT)
70 W + 70 W (8 Ω/ohms, 20 Hz – 20 kHz, T.H.D. 0.07 %)
140 W + 140 W (4 Ω/ohms, 1 kHz, T.H.D. 0.7 %)
Total harmonic distortion:
0.01 % (Rated output: –3 dB), 8 Ω/ohms, 1 kHz
Output terminals:
Speaker A or B: 4 – 16 Ω/ohms
Speaker A + B: 8 – 16 Ω/ohms
Suited for headphones/stereo headphones
Pre amplifier section
Input Sensitivity/Input Impedance:
PHONO (MM): 2.5 mV / 47 kΩ/kohms
PHONO (MC): 200 μV / 100 Ω/ohms
CD, NETWORK, RECORDER:
125 mV / 47 kΩ/kohms (SOURCE DIRECT: Off)
125 mV / 23 kΩ/kohms (SOURCE DIRECT: On)
RIAA Deviation:
PHONO: 20 Hz – 20 kHz ±0.5 dB
Maximum Input:
PHONO (MM): 130 mV / 1 kHz
PHONO (MC): 10 mV / 1 kHz
Overall performance
SN Ratio (A network):
PHONO (MM): 89 dB
(With input terminals short-circuited, 5 mV input signal)
PHONO (MC): 74 dB
(With input terminals short-circuited, 0.5 mV input signal)
CD, NETWORK, RECORDER: 108 dB (input terminals short-circuited)
Frequency response:
5 Hz – 100 kHz (0 – -3 dB)
Tone control:
BASS: 100 Hz ±8 dB
TREBLE: 10 kHz ±8 dB
Digital input signal format
Format:
Digital audio interface (Linear PCM)
Coaxial input:
0.5 Vp-p / 75 Ω/ohms
Optical input:
More than – 27 dBm
Optical wavelength:
660 nm
Power supply:
AC230 V, 50/60 Hz
Power consumption:
295 W
Power consumption in standby mode:
0.2 W
