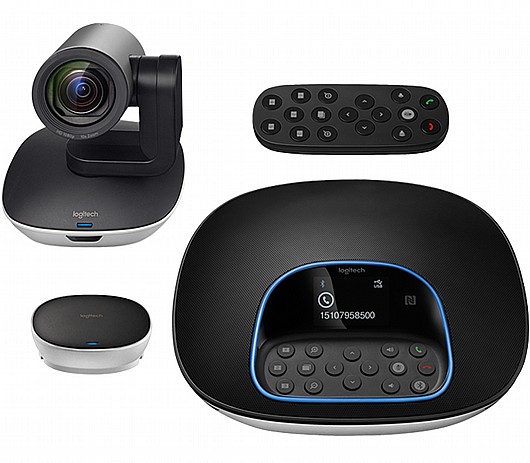

����� ��� Logitech Group Video Conferencing ������

Camera:

• Height x Width x Depth:
• 5.12 in (130 mm) x 7.0 in (170 mm) x 5.40 in (138 mm)

• Weight: 1.31lb (585 g)

Speakerphone:

• Height x Width x Depth:
• 9.5 in (240 mm ) x 2.5 in (65 mm ) x 9.5 in (240 mm )

• Weight: 2.68 lb (1223 g)

Hub:

• Height x Width x Depth:
• 3.75 in (94 mm) x 1.3 in (34 mm) x 2.9 in (74 mm)

• Weight: 3.0 oz (83 g)

Remote:

• Height x Width x Depth:
• 2.0 in (50 mm) x 5.0 in(120 mm) x 0.5 in (12 mm)

• Weight: 2.0 oz (51 g)

Wall/Table Mount:

• Height x Width x Depth:
• 8.27 in (210 mm) x 4.72 in (120 mm) x 3.9 in (99 mm)

• Weight: 8.99 oz (255 g)

Expansion Mics (Optional):

• Height x Width x Depth:
• 3.30 in (83 mm) x 3.30 in (83 mm) x 0.83 in (21 mm)

• Weight: 8.0 oz (230 g)

Windows® 7, 8.1 or 10
macOS®  10.10 or higher

CAMERA

• Smooth motorized pan, tilt and zoom controlled from remote or console
  Pan +/- 90°
  Tilt +35° / -45
  10x lossless HD zoom
  Field of View:

  • Diagonal: 90°
  • Horizontal: 82.1°
  • Vertical: 52.2°
  Full HD 1080p 30fps
  H.264 UVC 1.5 with Scalable Video Coding (SVC)
  Autofocus
  5 camera presets
  Far-end control (PTZ) of ConferenceCam product (with supported services)
  Kensington security slot
  Video mute/unmute LED indicator
  Standard tripod thread

REMOTE CONTROL

• Camera, speakerphone, and call control
  5 camera presets
  Docks on speakerphone
  IR 8.5 m/28-foot range
  CR2032 battery (included)

SPEAKERPHONE

• Full-duplex performance
  Acoustic echo cancellation
  Noise reduction technology
  Ultra-wideband audio
  Pairs with mobile devices via Bluetooth and NFC
  LCD for caller ID, call duration and other functional response
  LEDs for speakerphone streaming, mute, hold, and Bluetooth
  Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
  5 camera presets for pan, tilt, and zoom settings
  Kensington security slot

MICROPHONES

• Pickup range: 6m / 20 ft
  Pickup range with expansion mics: 8.5 m / 28 ft
  Four omnidirectional, beamforming microphones
  Frequency response: 100Hz – 11KHz
  Sensitivity: -28dB +/-3dB
  Distortion: <5% from 200Hz

HUB / CABLES / POWER

• Central Hub connects and powers all components
  Under-table mounting adhesive included
  One cable to camera: 5 m / 16 ft
  One cable to speakerphone: 5 m /16 ft
  Extended cables available (10 m and 15 m)
  One USB cable for connection to PC/Mac (2 m / 6.6 ft)
  AC Power adapter with regional plugs
  Power cable (3 m / 9.8 ft)

MOUNT

• Dual-purpose bracket works for both wall mounting and tabletop elevation

COMPATIBILITY AND CERTIFICATIONS

• Plug-and-play USB connectivity
  Certified for Skype for Business and ready for Teams
  Zoom Certified
  Fuze Certified
  Microsoft Cortana®
  Cisco Jabber®
  Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
