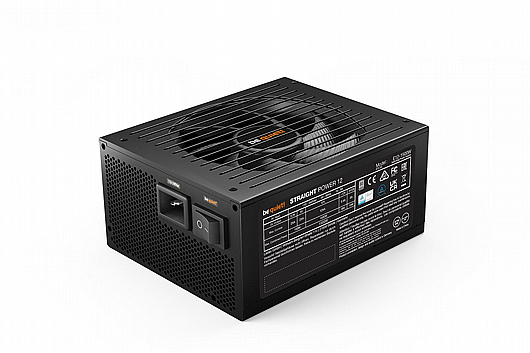

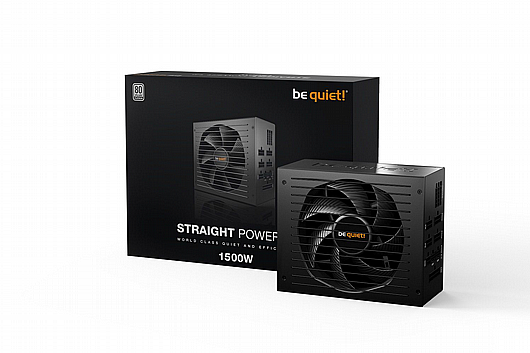

ספק כוח be quiet! STRAIGHT POWER 12 1500W BN340

ספק כוח be quiet! STRAIGHT POWER 12 1500W BN340
  • מקט 1039419
  • אפשרויות משלוח
    אפשרויות משלוח למוצר לבחירה בקופה:
    • משלוח PickUP לנקודות נבחרות באזורך עד 15 ק"ג- 2-5 ימי עסקים 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 40 ₪
    • איסוף עצמי- בתיאום מראש 0 ₪
    • משלוח עם שליח 2-5 ימי עסקים 0 ₪
    סגירה
  • יצרן  !be quiet
  • זמן אספקה עד5ימי עסקים
  • אחריות עשר שנים
  • מספר תשלומים  36

מחיר   1,690 ILS 31/1/2027 In stock !be quiet 1039419 1039419

  • +
  • -

General data

Model Straight Power 12 1500W
Continuous power (W) 1500
Peak power (W) 1570
Form factor Version 3.0
Form factor EPS 12V Version 2.92
Topology Full bridge + LLC + SR + DC/DC
Digitally controlled -
Voltage (Vac) 110 - 240
Frequency (Hz) 50 - 60
Input current (A) 15 / 9
Power factor at 100% load >0.99
Modern standby
Power consumption in standby (W) 0.15
Average life time (h / 25°C) >100,000
Operating temperature up to (°C) 40

Infographics

 open all / close all

Efficiency

80 PLUS certification Platinum
Efficiency (%) at 230V, 2% load 65.0
Efficiency (%) at 230V, 10% load 90.5
Efficiency (%) at 230V, 20% load 93.1
Efficiency (%) at 230V, 50% load 93.9
Efficiency (%) at 230V, 100% load 91.9

Fan and cooling technology

Fan Silent Wings
Fan size (mm) 135
Bearing technology FDB
Motor technology 6-pole fan motor
Max. fan speed (rpm) 2600
dB(A) at 10% load 9
dB(A) at 20% load 9
dB(A) at 50% load 12.7
dB(A) at 100% load 36.4

Output

Multi-rail operation (12V rails) -
12V single rail operation
Overclocking key -
+3.3V (A) 25
+5V (A) 25
+12V1 (A) 125
+12V2 (A) -
+12V3 (A) -
+12V4 (A) -
+12V5 (A) -
+12V6 (A) -
-12V (A) 0.5
+5Vsb (A) 3
Max. combined power 12V (W) 1500
Max. combined power 12VHPWR (W) 1000
Max. combined power 3.3V + 5V (W) 150
Hold-up time at 100% load (ms) 20.6
Hold-up time at 80% load (ms) -
Power good signal (ms) 100 - 150

Cables and connectors

Modular cables
Sleeved cables
Flat cables -
Maximum cable length (cm) 100
Cable length to motherboard (cm) 60
No. of cables 10
ATX-Motherboard (20+4-pin) 1
P4+4 (CPU) 1
P8 (CPU) 1
P4 (CPU) -
12VHPWR cables 2
PCI-e 6+2-pin (GPU) 4
PCI-e 6-pin (GPU) -
SATA 9
PATA 2
FDD (Floppy) -

Protection

OTP (over temperature protection)
OCP (over current protection)
OPP (over power protection)
SCP (short circuit protection)
OVP (over Voltage protection)
UVP (under Voltage protection)
SIP (Surge & Inrush protection)

Safety certification

BSMI
CB
CCC -
CE
cRUus -
cTUVus
CU
FCC
RCM
TÜV
UKCA

Environmental directives

Energy Star 8.0
ErP
WEEE
RoHS
Triman

Scope of delivery

Thumb screws -
Screws
Cable ties
Velcro cable ties -
User manual languages CN, DE, EN, ES, FR, JP, PL, RU, TW, KR
OCK slot bracket with switch / OCK jumper -
SFX-to-ATX adapter bracket -

Casing

Dimensions without cable (L x W x H), (mm) 180 x 150 x 86
Weight (kg) 2.12
Color Black

Service

Warranty (Years) 10
Express replacement service in first year DE, FR
International hotline / free of charge ✓ / DE, FR, US

Logistics data and RRP

Article number BN518
EAN code 4260052190319
Dimensions, package (L x W x H), (mm) 328 x 248 x 102
Gross weight, package (kg) 4.0
Pieces per packaging unit 4
Dimensions, shipping box (L x W x H), (mm) 447 x 282 x 346
Gross weight, shipping box (kg) 17.3
RRP (€) 349.90
