Turntable section
Motor DC Motor
Speed 33 1/3 RPM, 45 RPM RPM
Wow and Flutter 0.2%
Signal-to-Noise Ratio 67dB or higher (A-weighted, 20kHz LPF)60dB (unweighted, 20kHz, LPF)
Platter Aluminum Die-cast
Diameter of Platter 12", 30cm

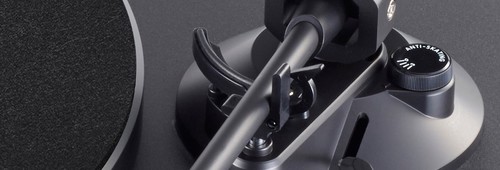

Tonearm section Type Static Balance, Straight
Effective Arm Length 8.8", 223mm
Stylus Pressure Range 0 to 5g
Compatible Cartridge Range 2.5 to 5.5gAnti-skating Adjustment Supported
Cartridge section Type VM-typeStylus Shape Conical
Frequency Response 20Hz to 20kHz
Channel Separation 24dB at 1kHz, 15dB at 10kHz
Channel Balance 1.5dB
Tracking Forcee 3.5g±0.5 g
Output Impedance 47k ohms
Output Voltage 3.5mV
Cartridge Weight 5.0g±0.3 gHead-shell Weight 11g (including nuts, screws and wires)
Stylus Replacement audio-technica ATN3600L

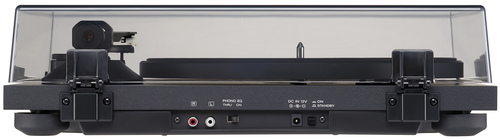

Analog Output section Connectors RCA Pin x 1 pair (Chrome-plated)
Output Voltage PHONO 4.2mVLINE 120mV (–13dBV)
Bluetooth® section Range Approx. 30ft. / 10 meters
Supported Codec SBC
General Power AC 100 to 240V, 50/60Hz
Power Consumption < 1.5W (< 0.5W at Standby)
Overall Dimensions(W x H x D) 16.5" x 4.6" x 14.0"420 x 117 x 356 mm
Weight Approx. 10.8 lbs. 4.9 kg
Accessories Rubber Sheet, EP Adapter, Counter Weight, Head-shell (MM-type Cartridge audio-technica AT3600L installed), Turntable (Platter), Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card)
