-Official product page link-
-FEATURES-
- Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933MHz (MAX)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost : Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Audio Boost : Reward your ears with studio grade sound quality
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
-SPECS-
Warranty : 3 years
Brand : MSI
Model : PRO H510M-B
Form Factor : mATX (202mm x 236mm)
CPU :
Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Chipset : Intel® H470
Onboard Graphics :
1 x HDMI*
1 x VGA**
*Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
**Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
***Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Audio :
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
Ethernet :
Realtek® 8111H Gigabit LAN
Storage Interface :
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Memory :
2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

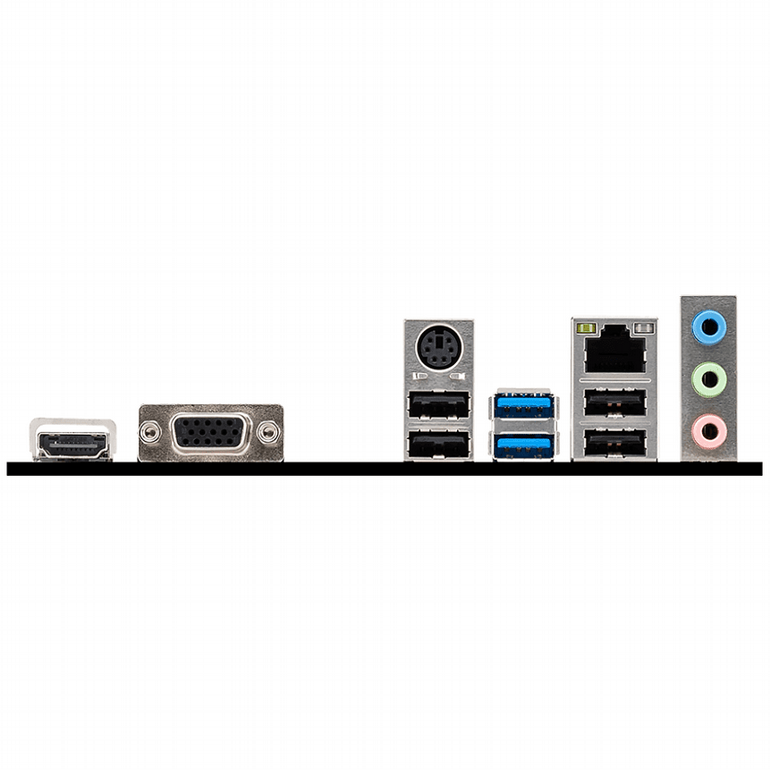

Back I/O Ports:
- HDMI™
- VGA
- Keyboard / Mouse
- USB 3.2 Gen 1 5Gbps (Type-A) x 2
- LAN port
- Audio Connectors
- USB 2.0 x 4
-Internal I/O Connectors-
1x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
LED FEATURE :
4 x EZ Debug LED
