מאפיינים:
Keyboard
61 keys (C2 – C7) with velocity
System
Upgradable operating system, Multitasking, Load while play
Sound Generator
EDS-X (Enhanced Definition Synthesis – eXpanded)
Filters with resonance, 3-band EQ on each Sound
Polyphony
128 voices, 128 oscillators
Effects
Accompaniment/Song: 2 insert effects; 2 master effects (148 types)
Keyboard Sounds: 1 insert effect; 2 master effects (148 types)
Final mastering effects: Limiter, Master EQ
Voice Processor: 5 FX, 28 Factory, 64 User Presets
Guitar Processor: 3 FX, 45 Factory, 64 User Presets
Sounds / Drum Kits
Factory: More than 1,700 Factory Sounds including a multilayer Stereo Piano with damper and body resonance, GM/XG sound sets and 106 Drum Kit
User: 512 Sounds, 256 Drum Kits
Digital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effect
DNC (Defined Nuance Control) Technology, Natural Ambience Drums
Full Sounds/Drum Kits editing
Sampling
128 MB compressed (equivalent to 256 MB linear data);
Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice
Styles
Factory: More than 370 Factory Styles, freely reconfigurable sets
User: 1,152 locations, including User and Direct banks
Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style;
Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/Pad Record with Step Record, Track and Event Edit
Style Creator Bot (MIDI Song to Style Converter)
Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode
Chord Sequencer
Chord Sequence recorder and player in Style Play mode
Chord Sequences can be saved to Style and SongBook Entries
Edit functions: Delete, Copy from Style/SongBook, Import/Export from/to SMF
Keyboard Set Library
Memorize Keyboard Sound settings
Factory: More than 290 Factory Keyboard Sets, freely reconfigurable
User: 864 locations, including User and Direct banks
‘My Setting’ special Keyboard Set
KAOSS FX
Automatic MIDI FX generator
More than 65 Factory Presets
Song Play
Supported formats: MID, KAR, MP3+Lyrics, MP3+G
Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function
MP3 Player / Recorder
MP3 Player and Recorder
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, and KAOSS Effects
Sequencer
Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
SongBook
Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options
Compatibility
Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads ‘i-Series’ models: Styles
Pads
Four Assignable Pads + Stop buttons
Pad Record function
General Controls
Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Joystick, 2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo
Lock; Metronome On/Off, Dial, Search, Shift Split, Record
Scale Controls
Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets
Control Inputs
Damper pedal (supports half-pedaling with the optional DS-1H pedal)
Assignable pedal/switch
Audio Inputs
Line (Left/Right): 1/4” jacks, +20dBm, 12k Ohm
Mic/Guitar (Left): 1/4” jack, with Gain control (0 — +40dB)
12k ohm (Mic) / 500k ohm (Guitar)
Audio Outputs
Left/Right, 1/4” jack, +21dBm, 0.003% THD+N@+18dBm
Headphone output (1/4” jack), 16-200 Ohms (50 Ohms suggested)
Speaker System
Amplification: 2 x 25W
Speakers: 2 x Dual Cone Speakers in Bass Reflex Box
MIDI
IN, OUT standard MIDI connectors
USB to MIDI using the USB ports
HOST: memory and controllers, DEVICE: personal computers
Eight user definable MIDI Setups
USB
Type A (Host), Type B (Device)
2.0 Hgh-Speed connections (480 Mbit/s). Low-Speed (1.5 Mbit/s) and Full-Speed (12 Mbit/s) devices can only be connected through a High-Speed USB hub.
Storage
Internal memory: 960 MB
USB external drives (drive not included)
microSD card (not included); rear panel slot with plastic cover
Display
7” Wide capacitive color TouchView™ TFT display
Video Out
RCA connector
Clock
Internal System Clock
Power Consumption
100-240 Volts, 50/60 Hz, 25 Watt normal / < 0.3 Watt in standby
Dimensions (W x D x H)
1030 x 378.3 x 132 mm/40.55" x 14.89" x 5.2" (without music stand; height with music rest: 355.8 mm / 14”)
Weight
9.9 kg/21.82 lbs
Included Items
AC Power Cable, Music Stand, Quick Guide manual
Accessories
EXP-2 Foot Controller, XVP-10 Expression/Volume Pedal

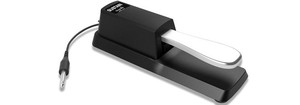

DS-1H Damper Pedal (supports half-pedal)
PS-1, PS-3 Pedal Switch
